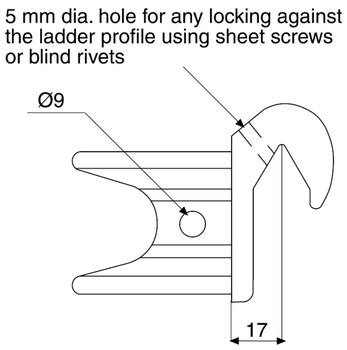

4 Vinkelkrok LM
Aktiv artikkel
El nummer
1357475
Artikkelnummer:
709017
GTIN:
7321677090174
Beskrivelse:
4 Vinkelkrok LM
Wibe Group. 1357475 - Wibe - Vinkelkrok 4 Lm
Produktegenskaper
Status produkt
Produktstatus
Aktiv artikkel
Kommersiell og web
lokal kode (e-nr)
1357475
Vareteks
4 Vinkelkrok LM
Vareteks medium
Vinkelkrok 4 Lm
Materiale
Aluminium
Miljøkorrosjonsklasse
C4
Bas
Aktivitet
Kabelforleggning
Produktfamilie
Tilbehør
Fabrikat
Wibe
GTIN
7321677090174
ETIM (EC000483-Kobling for stag/profilskinne)
Egnet for (EF000073)
C-profil
Modell / utførelse (EF000010)
Langsgående og vinkelforbindelser
Vinkel (EF008153)
90 °
Med skruetilbehør (EF005067)
Nei
Materiale (EF002169)
Aluminium
Rustfritt stål, beiset (EF006388)
Nei
Materialkvalitet (EF001257)
*
Overflatebeskyttelse (EF000139)
*
Antall hull/slisser per side (EF023769)
0
I skinnen (EF005902)
Nei
På skinnen (EF023768)
Nei
Logistikk
Forpakning 1 type
Stykke
Mengde FP 1
1
Vekt FP 1
0,08 kg
Dybde FP 1
86 mm
Bredde FP 1
71 mm
Høyde FP 1
19 mm
Forpakning 2 type
Pose
Mengde FP 2
10
Vekt FP 2
0,8 kg
Dybde FP 2
180 mm
Bredd FP 2
200 mm
Høyd FP 2
30 mm
Forpakning 4 type
Pall
Mengde FP 4
1000
Vekt FP 4
110 kg
Dybde FP 4
1200 mm
Bredde FP 4
800 mm
Høyde FP 4
340 mm
GTIN FP 4
77321677090173
Tolltariffnummer
76109090
Nettovekt
0,08 kg
Opprinnelsesland
SE
Sertifisering
ETIM-klasse
EC000483
Produktnedlastinger
Environmental Documents
Nedlastninger
Environmental Products
| Corrosion class | C1 | C2 | C3 | C4 | C5 | CX | |
| Environmental corrosion | Very low | Low | Average | High | Very high | Extreme | |
| Examples of environments | Indoors | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | Buildings with almost permanent condensation and with high pollution | Industrial buildings with extreme humidity and aggressive atmosphere. |
| Outdoors | Atmospheres with low levels of airborne pollution. Rural areas. | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | ||
|
Wibe Group designation
Exceeds requirements. Extremely high durability.
Recommended very high durability ( >20 years)
Possible alternative. High durability (10-20 years) |
Electro-galvanized (EG) |
|
|
||||
| Pre-galvanized (PG) |
|
|
|
||||
| Zinc+ (Z+) |
|
|
|
|
|||
| Hot-dip galvanized (HDG) |
|
|
|
|
|
||
| Zinkpox (ZP) |
|
|
|
|
|
|
|
| Stainless steel AISI 304L(SS304) |
|
|
|
|
|
|
|
| Stainless steel AISI 316L (SS316) |
|
|
|
|
|
|
|
| Glass Fibre Reinforced Polymer (FRP/GRP) |
|
|
|
|
|
|
|
This table shows estimated values.
For more detailed advice, please contact technical support at Wibe Group
