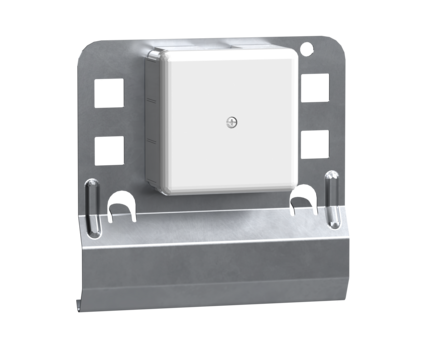

Junction box IP65MP+Junc.b.pl. 35S
Commercialized
Item number
731962
Local code:
*
GTIN:
3606480518973
Description:
Junction box IP65MP+Junc.b.pl. 35S
Wibe Group. 731962 - Wibe - junction box set - MP + 35S IP65 - steel pre-galvanized
Properties
Status product
Product status
Commercialized
Commercial and Web
Short description
Junction box IP65MP+Junc.b.pl. 35S
Medium description
Wibe - junction box set - MP + 35S IP65 - steel pre-galvanized
Material
Steel
Material type or surface treatment
Pre-galvanized
Environmental corrosion class
C2
Base
Activity
Cable support systems
Product family
Cable ladders
Brand
Wibe
GTIN
3606480518973
ETIM (EC001004-Mounting plate for cable support system)
Model (EF000010)
Horizontal
Plate height (EF005176)
164 mm
Plate width (EF005175)
170 mm
Type of fastening (EF002442)
Snapper mounting
Material (EF002169)
Steel
Stainless steel, pickled (EF006388)
No
Material quality (EF001257)
*
Surface protection (EF000139)
Continuously galvanized
Logistic
Pack 1 type
Each
Quantity pack 1
1
Weight pack 1
.34 kg
Length pack 1
170 mm
Width pack 1
50 mm
Height pack 1
164 mm
Pack 2 type
Carton
Quantity pack 2
10
Weight pack 2
3.4 kg
Length pack 2
370 mm
Width pack 2
300 mm
Height pack 2
170 mm
Pack 4 type
Pallet
Quantity pack 4
60
Weight pack 4
52 kg
Length pack 4
1200 mm
Width pack 4
800 mm
Height pack 4
340 mm
GTIN pack 4
73606480518972
Customs code
85369095
Net weight
.34 kg
Country of origin
SE
Certification
ETIM class
EC001004
Product downloads
Environmental Documents
Downloads
Environmental Products
| Corrosion class | Environmental corrosion | Examples of typical environments in temperate climates (informative) | Wibe Group designation | ||
| Outdoors | Indoors | ||||
| C1 | Very low | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Electro-galvanized DIN 50961/ISO 2081 |
||
| C2 | Low | Atmospheres with low levels of airborne pollution. Rural areas. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Pre-galvanized Z 275 in accordance with EN 10346 |
|
| C3 | Average | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Areas with average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | Hot-dip galvanized after manufacture in accordance with EN-ISO 1461 |
Zinc+ coating |
| C4 | High | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Areas of high humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | ||
| C5 | Very high | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Buildings with almost permanent condensation and with high pollution | Zinkpox® HDG+powder coating |
|
| Stainless steel EN 1.4301/AISI 304 |
|||||
| CX | Extreme | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | Industrial buildings with extreme humidity and aggressive atmosphere. | Stainless steel EN 1.4404/AISI 316L |
|
