PROFIELKLEM H42 TV
Commercialized
Item number
CSU733148
Local code:
*
GTIN:
7321677331482
Description:
PROFIELKLEM H42 TV

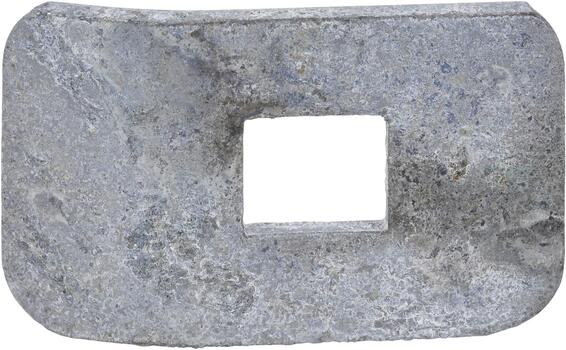

Wibe Group. CSU733148 - Stago - ladder beam clamp H42 - steel - hot-dip galvanized
Properties
Status product
Product status
Commercialized
Commercial and Web
Short description
PROFIELKLEM H42 TV
Medium description
Stago - ladder beam clamp H42 - steel - hot-dip galvanized
Material
Steel
Material type or surface treatment
Hot-dip galvanized
Environmental corrosion class
C4
Base
Activity
Cable support systems
Product family
Cable ladders
Brand
Stago
GTIN
7321677331482
ETIM (EC000464-Fixing clamp)
Type of fastening (EF002442)
Screwing
Connection type construction part (EF004374)
Clamp
Thread size (metric) (EF003563)
8
Suitable for flange thickness (EF006596)
- mm
Tube/cable diameter (EF005214)
- mm
Hinging (EF001076)
No
Hinge adjustable (EF002645)
No
Material (EF002169)
Steel
Material quality (EF001257)
*
Surface protection (EF000139)
Hot-dip galvanized
Breaking load (EF004571)
* N
Logistic
Weight pack 1
.023 kg
Length pack 1
42 mm
Width pack 1
25 mm
Height pack 1
7 mm
Customs code
7308909800
Net weight
.02 kg
Certification
ETIM class
EC000464
Product downloads
Environmental Documents
Downloads
Environmental Products
| Corrosion class | C1 | C2 | C3 | C4 | C5 | CX | |
| Environmental corrosion | Very low | Low | Average | High | Very high | Extreme | |
| Examples of environments | Indoors | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | Buildings with almost permanent condensation and with high pollution | Industrial buildings with extreme humidity and aggressive atmosphere. |
| Outdoors | Atmospheres with low levels of airborne pollution. Rural areas. | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | ||
|
Wibe Group designation
Exceeds requirements. Extremely high durability.
Recommended very high durability ( >20 years)
Possible alternative. High durability (10-20 years) |
Electro-galvanized (EG) |
|
|
||||
| Pre-galvanized (PG) |
|
|
|
||||
| Zinc+ (Z+) |
|
|
|
|
|||
| Hot-dip galvanized (HDG) |
|
|
|
|
|
||
| Zinkpox (ZP) |
|
|
|
|
|
|
|
| Stainless steel AISI 304L(SS304) |
|
|
|
|
|
|
|
| Stainless steel AISI 316L (SS316) |
|
|
|
|
|
|
|
| Glass Fibre Reinforced Polymer (FRP/GRP) |
|
|
|
|
|
|
|
This table shows estimated values.
For more detailed advice, please contact technical support at Wibe Group
