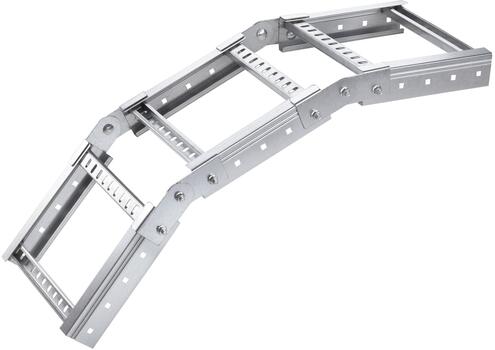

Adj dropping/rising piece SZ H51100/500

Commercialized

Item number

CSU737959

Local code: *

GTIN: 7321677379590

Description: Adj dropping/rising piece SZ H51100/500

Wibe Group. CSU737959 - Stago - internal / external riser adjustable H51100 100x500mm pre-galvanized

Data Sheet

Product status

Commercialized

Short description

Adj dropping/rising piece SZ H51100/500

Medium description

Stago - internal / external riser adjustable H51100 100x500mm pre-galvanized

Material

Steel

Material type or surface treatment

Pre-galvanized

Environmental corrosion class

Activity

Cable support systems

Product family

Cable ladders

Brand

Stago

GTIN

7321677379590

Change of direction (EF005210)

Rising/descending

Type of side joist (EF007666)

Profile (open)

Side wall perforation (EF001122)

Yes

Type of rung (EF001060)

Perforated profile

Angle (EF001218)

Adjustable

Bend model (EF020423)

Segmental bend

Hinging (EF001076)

Yes

Cable ladder height (EF004818)

100 mm

Cable ladder width (EF004817)

500 mm

Model (EF000010)

Without connector

Inner radius (EF004793)

300 mm

Wide span model (EF006397)

Suitable for circuit integrity (EF007806)

Material (EF002169)

Steel

Material quality (EF001257)

Surface protection (EF000139)

Continuously galvanized

Colour (EF000007)

RAL (EF000116)

Weight pack 1

4.906 kg

Length pack 1

891 mm

Width pack 1

530 mm

Height pack 1

100 mm

Customs code

7308909800

Net weight

4.91 kg

Country of origin

ETIM class

EC001535

GWP Total A1-A3

12.12 kgCO2e

Environmental Documents

Item number

CSU737959

Local code: *

GTIN: 7321677379590

Description: Adj dropping/rising piece SZ H51100/500

Data Sheet

Corrosion class		C1	C2	C3	C4	C5	CX
Environmental corrosion		Very low	Low	Average	High	Very high	Extreme
Examples of environments	Indoors	Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels.	Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses.	Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries.	High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards.	Buildings with almost permanent condensation and with high pollution	Industrial buildings with extreme humidity and aggressive atmosphere.
Examples of environments	Outdoors		Atmospheres with low levels of airborne pollution. Rural areas.	Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions.	Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas.	Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity	Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres.
Wibe Group designation Exceeds requirements. Extremely high durability. Recommended very high durability ( >20 years) Possible alternative. High durability (10-20 years)	Electro-galvanized (EG)
	Pre-galvanized (PG)
	Zinc+ (Z+)
	Hot-dip galvanized (HDG)
	Zinkpox (ZP)
	Stainless steel AISI 304L(SS304)
	Stainless steel AISI 316L (SS316)
	Glass Fibre Reinforced Polymer (FRP/GRP)
