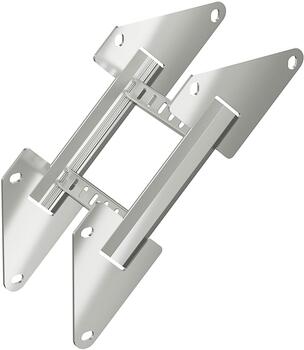

Riser Coupling 20C-200 HDG
Commercialized
Item number
CSU795159
Local code:
*
GTIN:
3606480739439
Description:
Riser Coupling 20C-200 HDG
Wibe Group. CSU795159 - Wibe - riser coupling 20C-200 - steel hot-dip galvanized
Properties
Status product
Product status
Commercialized
Commercial and Web
Short description
Riser Coupling 20C-200 HDG
Medium description
Wibe - riser coupling 20C-200 - steel hot-dip galvanized
Width
200 mm
Material
Steel
Material type or surface treatment
Hot-dip galvanized
Environmental corrosion class
C4
Base
Activity
Cable support systems
Product family
Cable ladders
Brand
Wibe
GTIN
3606480739439
ETIM (EC001535-Bend for cable ladder)
Change of direction (EF005210)
Rising/descending
Type of side joist (EF007666)
Tube shape (closed)
Side wall perforation (EF001122)
No
Type of rung (EF001060)
Perforated profile
Angle (EF001218)
90°
Bend model (EF020423)
Segmental bend
Hinging (EF001076)
No
Cable ladder height (EF004818)
190 mm
Cable ladder width (EF004817)
200 mm
Model (EF000010)
Without connector
Inner radius (EF004793)
* mm
Wide span model (EF006397)
No
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Steel
Material quality (EF001257)
*
Surface protection (EF000139)
Hot-dip galvanized
Colour (EF000007)
*
RAL (EF000116)
*
Logistic
Pack 1 type
Each
Quantity pack 1
1
Weight pack 1
2.489 kg
Length pack 1
550 mm
Width pack 1
200 mm
Height pack 1
170 mm
Pack 4 type
Pallet
Quantity pack 4
12
Weight pack 4
60 kg
Length pack 4
1200 mm
Width pack 4
800 mm
Height pack 4
340 mm
Customs code
73089059
Net weight
2.49 kg
Country of origin
SE
Certification
ETIM class
EC001535
Environmental
GWP Total A1-A3
6.9443 kgCO2e
Product downloads
Environmental Documents
Downloads
Environmental Products
| Corrosion class | C1 | C2 | C3 | C4 | C5 | CX | |
| Environmental corrosion | Very low | Low | Average | High | Very high | Extreme | |
| Examples of environments | Indoors | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | Buildings with almost permanent condensation and with high pollution | Industrial buildings with extreme humidity and aggressive atmosphere. |
| Outdoors | Atmospheres with low levels of airborne pollution. Rural areas. | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | ||
|
Wibe Group designation
Exceeds requirements. Extremely high durability.
Recommended very high durability ( >20 years)
Possible alternative. High durability (10-20 years) |
Electro-galvanized (EG) |
|
|
||||
| Pre-galvanized (PG) |
|
|
|
||||
| Zinc+ (Z+) |
|
|
|
|
|||
| Hot-dip galvanized (HDG) |
|
|
|
|
|
||
| Zinkpox (ZP) |
|
|
|
|
|
|
|
| Stainless steel AISI 304L(SS304) |
|
|
|
|
|
|
|
| Stainless steel AISI 316L (SS316) |
|
|
|
|
|
|
|
| Glass Fibre Reinforced Polymer (FRP/GRP) |
|
|
|
|
|
|
|
This table shows estimated values.
For more detailed advice, please contact technical support at Wibe Group
