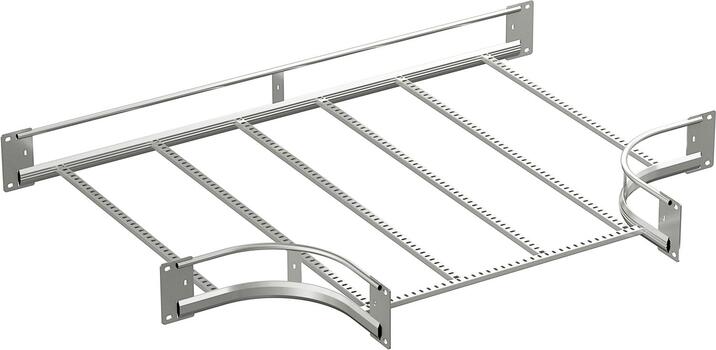

T-Junction 20C-1000 HDG
Commercialized
Item number
CSU795158
Local code:
*
GTIN:
3606480739422
Description:
T-Junction 20C-1000 HDG
Wibe Group. CSU795158 - Wibe - T-junction 20C-1000 - inner radius 268 mm - steel hot-dip galvanized
Properties
Status product
Product status
Commercialized
Commercial and Web
Short description
T-Junction 20C-1000 HDG
Medium description
Wibe - T-junction 20C-1000 - inner radius 268 mm - steel hot-dip galvanized
Width
1000 mm
Material
Steel
Material type or surface treatment
Hot-dip galvanized
Environmental corrosion class
C4
Base
Activity
Cable support systems
Product family
Cable ladders
Brand
Wibe
GTIN
3606480739422
ETIM (EC001540-Tee for cable ladder)
Type of side joist (EF007666)
Tube shape (closed)
Type of rung (EF001060)
Perforated profile
Cable ladder height (EF004818)
190 mm
Cable ladder width (EF004817)
1000 mm
Cable ladder branch width (EF004816)
1000 mm
Symmetrical model (EF006521)
No
Inner radius (EF004793)
268 mm
Model (EF000010)
Without connector
Wide span model (EF006397)
No
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Steel
Material quality (EF001257)
*
Surface protection (EF000139)
Hot-dip galvanized
Colour (EF000007)
*
RAL (EF000116)
*
Logistic
Pack 1 type
Each
Quantity pack 1
1
Weight pack 1
15.147 kg
Length pack 1
1850 mm
Width pack 1
1425 mm
Height pack 1
190 mm
Customs code
73089059
Net weight
15.15 kg
Country of origin
SE
Certification
ETIM class
EC001540
Environmental
GWP Total A1-A3
42.2601 kgCO2e
Product downloads
Environmental Documents
Downloads
Environmental Products
| Corrosion class | C1 | C2 | C3 | C4 | C5 | CX | |
| Environmental corrosion | Very low | Low | Average | High | Very high | Extreme | |
| Examples of environments | Indoors | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | Buildings with almost permanent condensation and with high pollution | Industrial buildings with extreme humidity and aggressive atmosphere. |
| Outdoors | Atmospheres with low levels of airborne pollution. Rural areas. | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | ||
|
Wibe Group designation
Exceeds requirements. Extremely high durability.
Recommended very high durability ( >20 years)
Possible alternative. High durability (10-20 years) |
Electro-galvanized (EG) |
|
|
||||
| Pre-galvanized (PG) |
|
|
|
||||
| Zinc+ (Z+) |
|
|
|
|
|||
| Hot-dip galvanized (HDG) |
|
|
|
|
|
||
| Zinkpox (ZP) |
|
|
|
|
|
|
|
| Stainless steel AISI 304L(SS304) |
|
|
|
|
|
|
|
| Stainless steel AISI 316L (SS316) |
|
|
|
|
|
|
|
| Glass Fibre Reinforced Polymer (FRP/GRP) |
|
|
|
|
|
|
|
This table shows estimated values.
For more detailed advice, please contact technical support at Wibe Group
