Cable ladder KHZPV-600 6m AISI316L

/storage/3065CECDCCCC4BC167B6D979C1CC035C332B5C8093118C37CFD41E958948B2E7/7ed12f8d3c884b5daca8de3b93216d6a/jpg/media/a9052265eb4443099f3a5dfa3dab9ece/784070.jpg
Commercialized

Item number

784070

Local code: *
GTIN: 7321677840700
Description: Cable ladder KHZPV-600 6m AISI316L

Corrosion class

C5-M

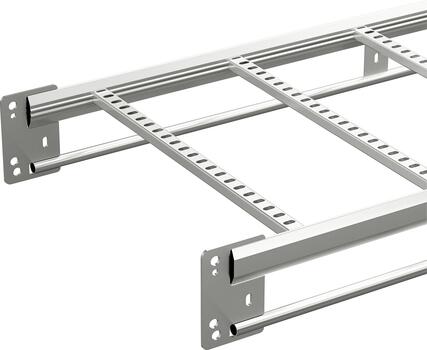

Wibe Group. 784070 - Wibe - reinforced cable ladder - KHZPV-600 - with closed side profiles and perforated rungs - 6 m - stainless steel AISI316L

More Info

Properties

Status product
Product status
Commercialized
Commercial and Web
Short description
Cable ladder KHZPV-600 6m AISI316L
Medium description
Wibe - reinforced cable ladder - KHZPV-600 - with closed side profiles and perforated rungs - 6 m - stainless steel AISI316L
Length
6000 mm
Width
600 mm
Height
150 mm
Material
Stainless steel
Material type or surface treatment
AISI316L
Corrosion class
C5-M
Base
Activity
Cable support systems
Product family
Cable ladders
Brand
Wibe
Range
KHZPV
GTIN
7321677840700
ETIM (EC000854-Cable ladder/wide span cable ladder)
Type of side joist (EF007666)
Tube shape (closed)
Side wall perforation (EF001122)
No
Type of rung (EF001060)
Perforated profile
Fixation rung (EF008307)
Welded
Height (EF000040)
134 mm
Width (EF000008)
600 mm
Length (EF001438)
6000 mm
Useful cross section (EF005140)
94248000 mm²
Rung centre spacing (EF008185)
250 mm
Wide span model (EF006397)
Yes
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Stainless steel
Material quality (EF001257)
Stainless steel 316 (1.4401)
Surface protection (EF000139)
Other
Colour (EF000007)
*
RAL (EF000116)
*
Max. safe working load according to IEC 61537 (EF016305)
* N/m
Span between supports according to IEC 61537 (EF015363)
* mm
Load test type according to IEC 61537 (EF015362)
*
Weight (EF000167)
* kg/m
Logistic
Pack 1 type
Each
Quantity pack 1
1
Weight pack 1
32.5 kg
Length pack 1
6200 mm
Width pack 1
597 mm
Height pack 1
150 mm
Pack 4 type
Pallet
Quantity pack 4
10
Weight pack 4
351 kg
Length pack 4
6200 mm
Width pack 4
610 mm
Height pack 4
790 mm
Customs code
73089059
Net weight
32.5 kg
Country of origin
SE
Certification
ETIM class
EC000854
Environmental
GWP Total A1-A3
189.8 kgCO2e
