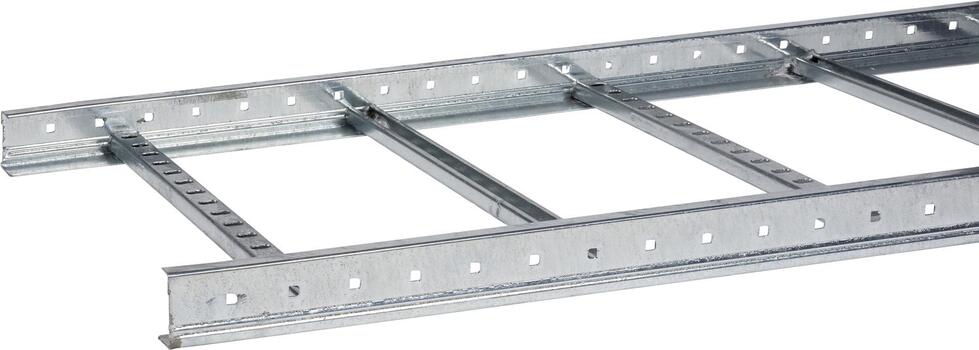

Cable ladder WHS60/200 HDG L3mtr
Commercialized
Item number
CSU737101
Local code:
*
GTIN:
3606480692901
Description:
Cable ladder WHS60/200 HDG L3mtr
Wibe Group. CSU737101 - Stago - cable ladder - WHS - 60x200 - Hot-dip galvanized - 3 m
Properties
Status product
Product status
Commercialized
Commercial and Web
Short description
Cable ladder WHS60/200 HDG L3mtr
Medium description
Stago - cable ladder - WHS - 60x200 - Hot-dip galvanized - 3 m
Length
3000 mm
Width
200 mm
Height
60 mm
Material
Steel
Material type or surface treatment
Hot-dip galvanized
Environmental corrosion class
C4
Base
Activity
Cable support systems
Product family
Cable ladders
Brand
Stago
Range
LB4000
GTIN
3606480692901
ETIM (EC000854-Cable ladder/wide span cable ladder)
Type of side joist (EF007666)
Profile (open)
Side wall perforation (EF001122)
No
Type of rung (EF001060)
Perforated profile
Fixation rung (EF008307)
Welded
Height (EF000040)
60 mm
Width (EF000008)
200 mm
Length (EF001438)
3000 mm
Useful cross section (EF005140)
7800 mm²
Rung centre spacing (EF008185)
250 mm
Wide span model (EF006397)
No
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Steel
Material quality (EF001257)
*
Surface protection (EF000139)
Hot-dip galvanized
Colour (EF000007)
*
RAL (EF000116)
*
Max. safe working load according to IEC 61537 (EF016305)
* N/m
Span between supports according to IEC 61537 (EF015363)
* mm
Load test type according to IEC 61537 (EF015362)
Type I
Weight (EF000167)
3.45 kg/m
Logistic
Pack 1 type
Each
Quantity pack 1
1
Weight pack 1
10.35 kg
Length pack 1
3000 mm
Width pack 1
200 mm
Height pack 1
60 mm
GTIN pack 1
3606480692901
Customs code
7308909800
Net weight
10.35 kg
Certification
ETIM class
EC000854
Product downloads
Environmental Documents
Downloads
Environmental Products
| Corrosion class | C1 | C2 | C3 | C4 | C5 | CX | |
| Environmental corrosion | Very low | Low | Average | High | Very high | Extreme | |
| Examples of environments | Indoors | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | Buildings with almost permanent condensation and with high pollution | Industrial buildings with extreme humidity and aggressive atmosphere. |
| Outdoors | Atmospheres with low levels of airborne pollution. Rural areas. | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | ||
|
Wibe Group designation
Exceeds requirements. Extremely high durability.
Recommended very high durability ( >20 years)
Possible alternative. High durability (10-20 years) |
Electro-galvanized (EG) |
|
|
||||
| Pre-galvanized (PG) |
|
|
|
||||
| Zinc+ (Z+) |
|
|
|
|
|||
| Hot-dip galvanized (HDG) |
|
|
|
|
|
||
| Zinkpox (ZP) |
|
|
|
|
|
|
|
| Stainless steel AISI 304L(SS304) |
|
|
|
|
|
|
|
| Stainless steel AISI 316L (SS316) |
|
|
|
|
|
|
|
| Glass Fibre Reinforced Polymer (FRP/GRP) |
|
|
|
|
|
|
|
This table shows estimated values.
For more detailed advice, please contact technical support at Wibe Group
