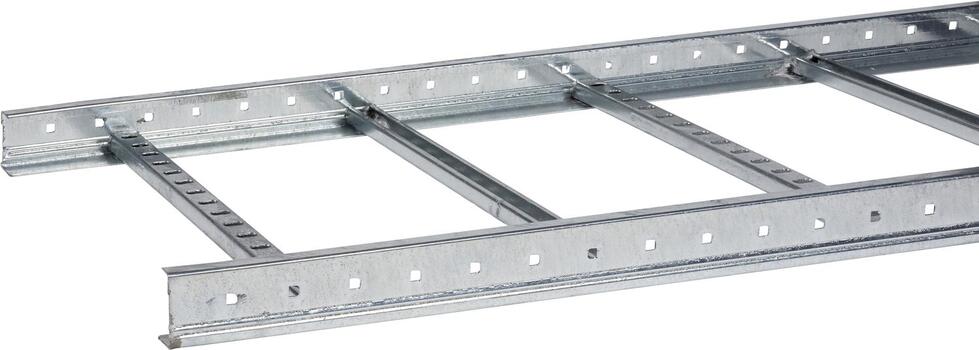

Cable ladder WHS60/300 HDG L=3mtr

Commercialized

Item number

CSU737102

Local code: *

GTIN: 3606480692918

Description: Cable ladder WHS60/300 HDG L=3mtr

Wibe Group. CSU737102 - Stago - Wibe - cable ladder - WHS - 300 - Hot-dip galvanized - 3 m

Data Sheet

Product status

Commercialized

Short description

Cable ladder WHS60/300 HDG L=3mtr

Medium description

Wibe - cable ladder - WHS - 300 - Hot-dip galvanized - 3 m

Length

3000 mm

Width

300 mm

Height

60 mm

Material

Steel

Material type or surface treatment

Hot-dip galvanized

Environmental corrosion class

Activity

Cable support systems

Product family

Cable ladders

Brand

Stago

Range

LB4000

GTIN

3606480692918

Type of side joist (EF007666)

Profile (open)

Side wall perforation (EF001122)

Type of rung (EF001060)

Perforated profile

Fixation rung (EF008307)

Welded

Height (EF000040)

60 mm

Width (EF000008)

300 mm

Length (EF001438)

3000 mm

Useful cross section (EF005140)

11700 mm²

Rung centre spacing (EF008185)

250 mm

Wide span model (EF006397)

Suitable for circuit integrity (EF007806)

Material (EF002169)

Steel

Material quality (EF001257)

Surface protection (EF000139)

Hot-dip galvanized

Colour (EF000007)

RAL (EF000116)

Max. safe working load according to IEC 61537 (EF016305)

* N/m

Span between supports according to IEC 61537 (EF015363)

* mm

Load test type according to IEC 61537 (EF015362)

Type I

Weight (EF000167)

3.79 kg/m

Pack 1 type

Each

Quantity pack 1

Weight pack 1

11.36 kg

Length pack 1

3000 mm

Width pack 1

300 mm

Height pack 1

60 mm

GTIN pack 1

3606480692918

Customs code

7308909800

Net weight

11.36 kg

ETIM class

EC000854

Environmental Documents

Item number

CSU737102

Local code: *

GTIN: 3606480692918

Description: Cable ladder WHS60/300 HDG L=3mtr

Data Sheet

Corrosion class		C1	C2	C3	C4	C5	CX
Environmental corrosion		Very low	Low	Average	High	Very high	Extreme
Examples of environments	Indoors	Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels.	Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses.	Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries.	High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards.	Buildings with almost permanent condensation and with high pollution	Industrial buildings with extreme humidity and aggressive atmosphere.
Examples of environments	Outdoors		Atmospheres with low levels of airborne pollution. Rural areas.	Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions.	Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas.	Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity	Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres.
Wibe Group designation Exceeds requirements. Extremely high durability. Recommended very high durability ( >20 years) Possible alternative. High durability (10-20 years)	Electro-galvanized (EG)
	Pre-galvanized (PG)
	Zinc+ (Z+)
	Hot-dip galvanized (HDG)
	Zinkpox (ZP)
	Stainless steel AISI 304L(SS304)
	Stainless steel AISI 316L (SS316)
	Glass Fibre Reinforced Polymer (FRP/GRP)
