LB WHS100-600 TV L=3M
Commercialized
Item number
CSU737022
Local code:
*
GTIN:
7321677370221
Description:
LB WHS100-600 TV L=3M

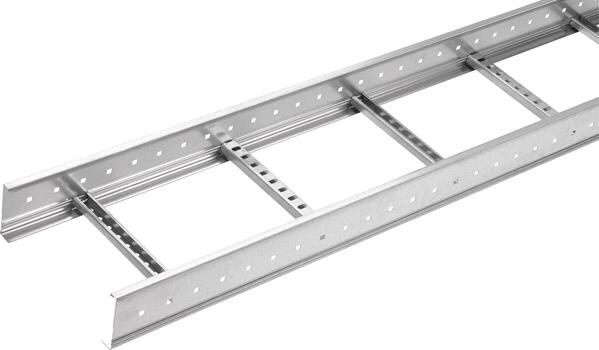

Wibe Group. CSU737022 - Stago - whs cable ladder 100x600mm RD=250 L=3m 1.5mm Hot-dip galvanized
Properties
Commercial and Web
Short description
LB WHS100-600 TV L=3M
Medium description
Stago - whs cable ladder 100x600mm RD=250 L=3m 1.5mm Hot-dip galvanized
Length
3000
Width
600
Material
Steel
Material type or surface treatment
Hot-dip galvanized
Corrosion class
C4
Base
Activity
Cable support systems
Product family
Cable ladders
Brand
Stago
Range
LB4000
GTIN
7321677370221
ETIM (EC000854-Cable ladder/wide span cable ladder)
Type of side joist (EF007666)
Profile (open)
Side wall perforation (EF001122)
Yes
Type of rung (EF001060)
Perforated profile
Fixation rung (EF008307)
Welded
Height (EF000040)
100 mm
Width (EF000008)
600 mm
Length (EF001438)
3000 mm
Useful cross section (EF005140)
* mm²
Rung centre spacing (EF008185)
250 mm
Wide span model (EF006397)
No
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Steel
Material quality (EF001257)
*
Surface protection (EF000139)
Hot-dip galvanized
Colour (EF000007)
*
RAL (EF000116)
*
Max. safe working load according to IEC 61537 (EF016305)
* N/m
Span between supports according to IEC 61537 (EF015363)
* mm
Load test type according to IEC 61537 (EF015362)
*
Weight (EF000167)
* kg/m
Logistic
Pack 1 type
Each
Quantity pack 1
1
Weight pack 1
5.033
Length pack 1
1000 mm
Width pack 1
600
Height pack 1
100
GTIN pack 1
7321677370221
Customs code
7308909800
Country of origin
NL
Certification
ETIM class
EC000854
Status product
Product status
Commercialized
Product downloads
Environmental Documents
