Binnenliggende300 mm
Commercialized
Item number
CSU08273000
Local code:
*
GTIN:
8712186117404
Description:
Binnenliggende300

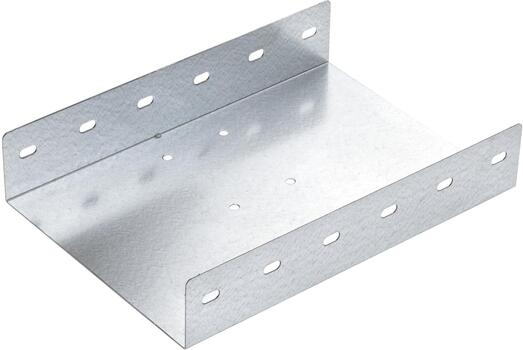

Wibe Group. CSU08273000 - Stago - Inside U-shaped joint - 300 - steel - pre-galvanized
Properties
Status product
Product status
Commercialized
Commercial and Web
Short description
Binnenliggende300
Medium description
Stago - Inside U-shaped joint - 300 - steel - pre-galvanized
Material
Steel
Material type or surface treatment
Pre-galvanized
Environmental corrosion class
C2
Base
Activity
Cable support systems
Product family
Cable trays
Brand
Stago
GTIN
8712186117404
ETIM (EC002413-Connector for cable support system)
Model (EF000010)
Longitudinal joint
Hinged joint horizontal (EF006392)
No
Hinged joint vertical (EF006393)
No
Type of connection (EF000064)
Screw connector
Suitable for wire mesh tray (EF005163)
No
Suitable for cable ladder (EF005165)
No
Suitable for cable tray (EF005166)
Yes
Suitable for cable management system width (EF008339)
300-300 mm
Suitable for cable management system height (EF006391)
60 mm
Suitable for mesh cable tray filament (EF005164)
60-60 mm
Length (EF001438)
* mm
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Steel
Stainless steel, pickled (EF006388)
No
Material quality (EF001257)
Other
Surface protection (EF000139)
Continuously galvanized
Colour (EF000007)
*
RAL (EF000116)
*
Logistic
Weight pack 1
1.302 kg
Length pack 1
290 mm
Width pack 1
383 mm
Height pack 1
2 mm
Customs code
7308909800
Net weight
1.3 kg
Certification
ETIM class
EC002413
Environmental
GWP Total A1-A3
3.22 kgCO2e
Product downloads
Environmental Documents
Downloads
Environmental Products
| Corrosion class | C1 | C2 | C3 | C4 | C5 | CX | |
| Environmental corrosion | Very low | Low | Average | High | Very high | Extreme | |
| Examples of environments | Indoors | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | Buildings with almost permanent condensation and with high pollution | Industrial buildings with extreme humidity and aggressive atmosphere. |
| Outdoors | Atmospheres with low levels of airborne pollution. Rural areas. | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | ||
|
Wibe Group designation
Exceeds requirements. Extremely high durability.
Recommended very high durability ( >20 years)
Possible alternative. High durability (10-20 years) |
Electro-galvanized (EG) |
|
|
||||
| Pre-galvanized (PG) |
|
|
|
||||
| Zinc+ (Z+) |
|
|
|
|
|||
| Hot-dip galvanized (HDG) |
|
|
|
|
|
||
| Zinkpox (ZP) |
|
|
|
|
|
|
|
| Stainless steel AISI 304L(SS304) |
|
|
|
|
|
|
|
| Stainless steel AISI 316L (SS316) |
|
|
|
|
|
|
|
| Glass Fibre Reinforced Polymer (FRP/GRP) |
|
|
|
|
|
|
|
This table shows estimated values.
For more detailed advice, please contact technical support at Wibe Group
