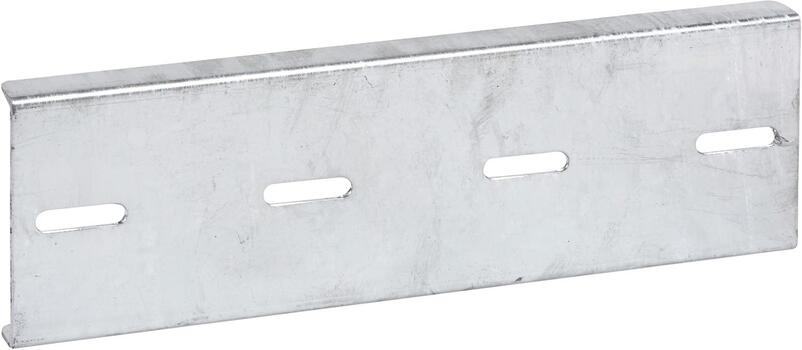

ConnectorH21100 HDG

Commercialized

Item number

CSU733143

Local code: *

GTIN: 7321677331437

Description: ConnectorH21100 HDG

Wibe Group. CSU733143 - Stago - External joint H21100 - 60 - steel - hot-dip galvanized

Data Sheet

Product status

Commercialized

Short description

ConnectorH21100 HDG

Medium description

Stago - External joint H21100 - 60 - steel - hot-dip galvanized

Material

Steel

Material type or surface treatment

Hot-dip galvanized

Environmental corrosion class

Activity

Cable support systems

Product family

Cable ladders

Brand

Stago

GTIN

7321677331437

Model (EF000010)

Longitudinal joint

Hinged joint horizontal (EF006392)

Hinged joint vertical (EF006393)

Type of connection (EF000064)

Screw connector

Suitable for wire mesh tray (EF005163)

Suitable for cable ladder (EF005165)

Yes

Suitable for cable tray (EF005166)

Suitable for cable management system width (EF008339)

200 - 600 mm

Suitable for cable management system height (EF006391)

100 mm

Suitable for mesh cable tray filament (EF005164)

- mm

Length (EF001438)

360 mm

Suitable for circuit integrity (EF007806)

Material (EF002169)

Steel

Stainless steel, pickled (EF006388)

Material quality (EF001257)

Surface protection (EF000139)

Hot-dip galvanized

Colour (EF000007)

RAL (EF000116)

Weight pack 1

0.736 kg

Length pack 1

360 mm

Width pack 1

105 mm

Height pack 1

17 mm

Customs code

7308909800

Net weight

0.74 kg

ETIM class

EC002413

GWP Total A1-A3

2.09024 kgCO2e

Environmental Documents

Item number

CSU733143

Local code: *

GTIN: 7321677331437

Description: ConnectorH21100 HDG

Data Sheet

Corrosion class		C1	C2	C3	C4	C5	CX
Environmental corrosion		Very low	Low	Average	High	Very high	Extreme
Examples of environments	Indoors	Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels.	Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses.	Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries.	High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards.	Buildings with almost permanent condensation and with high pollution	Industrial buildings with extreme humidity and aggressive atmosphere.
Examples of environments	Outdoors		Atmospheres with low levels of airborne pollution. Rural areas.	Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions.	Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas.	Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity	Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres.
Wibe Group designation Exceeds requirements. Extremely high durability. Recommended very high durability ( >20 years) Possible alternative. High durability (10-20 years)	Electro-galvanized (EG)
	Pre-galvanized (PG)
	Zinc+ (Z+)
	Hot-dip galvanized (HDG)
	Zinkpox (ZP)
	Stainless steel AISI 304L(SS304)
	Stainless steel AISI 316L (SS316)
	Glass Fibre Reinforced Polymer (FRP/GRP)

ConnectorH21100 HDG
