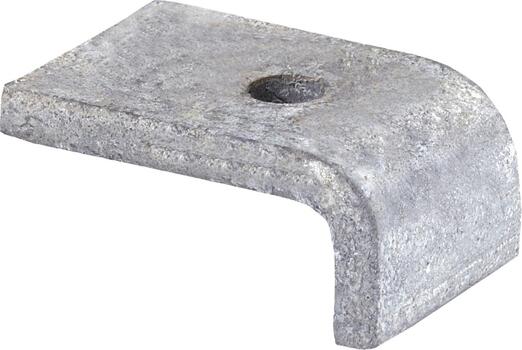

Fillingplate 12 mm HDG

Commercialized

Item number

CSU08450100

Local code: *

GTIN: 8712513009099

Description: Fillingplate 12 mm HDG

Wibe Group. CSU08450100 - Wibe - Stago - clamping angle - 12 mm - steel - hot-dip galvanized

Contact seller
Contact support

Data Sheet

Product status

Commercialized

Short description

Fillingplate 12 mm HDG

Medium description

Stago - clamping angle - 12 mm - steel - hot-dip galvanized

Material

Steel

Material type or surface treatment

Hot-dip galvanized

Environmental corrosion class

C2; C3; C4

Activity

Cable support systems

Product family

Cable ladders

Brand

Wibe

GTIN

8712513009099

Suitable for (EF000073)

C-profile

Model (EF000010)

Clamp piece

With screw accessories (EF005067)

Material (EF002169)

Steel

Material quality (EF001257)

Other

Surface protection (EF000139)

Hot-dip galvanized

Customs code

7308909800

Net weight

0.04 kg

ETIM class

EC000482

Environmental Documents

CSU08450100_reach.pdf pdf 77 kb
CSU08450100_rohs.pdf pdf 76 kb

Item number

CSU08450100

Local code: *

GTIN: 8712513009099

Description: Fillingplate 12 mm HDG

Data Sheet

Corrosion class		C1	C2	C3	C4	C5	CX
Environmental corrosion		Very low	Low	Average	High	Very high	Extreme
Examples of environments	Indoors	Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels.	Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses.	Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries.	High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards.	Buildings with almost permanent condensation and with high pollution	Industrial buildings with extreme humidity and aggressive atmosphere.
Examples of environments	Outdoors		Atmospheres with low levels of airborne pollution. Rural areas.	Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions.	Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas.	Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity	Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres.
Wibe Group designation Exceeds requirements. Extremely high durability. Recommended very high durability ( >20 years) Possible alternative. High durability (10-20 years)	Electro-galvanized (EG)
	Pre-galvanized (PG)
	Zinc+ (Z+)
	Hot-dip galvanized (HDG)
	Zinkpox (ZP)
	Stainless steel AISI 304L(SS304)
	Stainless steel AISI 316L (SS316)
	Glass Fibre Reinforced Polymer (FRP/GRP)
