HOEKSTUK VAST 70 R6016/70
Commercialized
Item number
CSU0861109616
Local code:
*
GTIN:
*
Description:
HOEKSTUK VAST 70 R6016/70

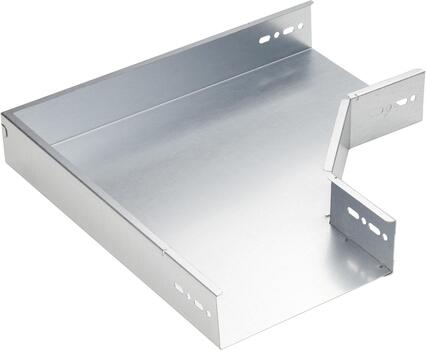

Wibe Group. CSU0861109616 - Wibe - Stago - horizontal bend 90° formed 60x70mm pre-galvanized - RAL6016
Properties
Status product
Product status
Commercialized
Commercial and Web
Short description
HOEKSTUK VAST 70 R6016/70
Medium description
Stago - horizontal bend 90° formed 60x70mm pre-galvanized - RAL6016
Material
Steel
Material type or surface treatment
Painted
Environmental corrosion class
C2
Base
Activity
Cable support systems
Product family
Common accessories
Brand
Wibe
ETIM (EC002400-Bend for cable tray)
Change of direction (EF005210)
Horizontal
Angle (EF001218)
*
Construction type (EF000767)
Bend rigid
Bend model (EF020423)
*
With cover (EF007965)
No
Inner radius (EF004793)
100 mm
Cable tray height (EF004822)
60 mm
Cable tray width (EF004820)
70 mm
Material thickness (EF000386)
* mm
Side wall perforation (EF001122)
No
Mounting perforation in bottom (EF004545)
No
NATO (EF006059)
No
Model (EF000010)
Without connector
Wide span model (EF006397)
No
Suitable for circuit integrity (EF007806)
*
Material (EF002169)
Steel
Stainless steel, pickled (EF006388)
*
Material quality (EF001257)
Other
Surface protection (EF000139)
Continuously galvanized and coated
Colour (EF000007)
*
RAL (EF000116)
6016
Logistic
Quantity pack 1
1
Weight pack 1
.631 kg
Length pack 1
273 mm
Width pack 1
273 mm
Height pack 1
62 mm
Customs code
7308909800
Net weight
.63 kg
Country of origin
NL
Certification
ETIM class
EC002400
Product downloads
Environmental Documents
Downloads
Environmental Products
| Corrosion class | C1 | C2 | C3 | C4 | C5 | CX | |
| Environmental corrosion | Very low | Low | Average | High | Very high | Extreme | |
| Examples of environments | Indoors | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | Buildings with almost permanent condensation and with high pollution | Industrial buildings with extreme humidity and aggressive atmosphere. |
| Outdoors | Atmospheres with low levels of airborne pollution. Rural areas. | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | ||
|
Wibe Group designation
Exceeds requirements. Extremely high durability.
Recommended very high durability ( >20 years)
Possible alternative. High durability (10-20 years) |
Electro-galvanized (EG) |
|
|
||||
| Pre-galvanized (PG) |
|
|
|
||||
| Zinc+ (Z+) |
|
|
|
|
|||
| Hot-dip galvanized (HDG) |
|
|
|
|
|
||
| Zinkpox (ZP) |
|
|
|
|
|
|
|
| Stainless steel AISI 304L(SS304) |
|
|
|
|
|
|
|
| Stainless steel AISI 316L (SS316) |
|
|
|
|
|
|
|
| Glass Fibre Reinforced Polymer (FRP/GRP) |
|
|
|
|
|
|
|
This table shows estimated values.
For more detailed advice, please contact technical support at Wibe Group
