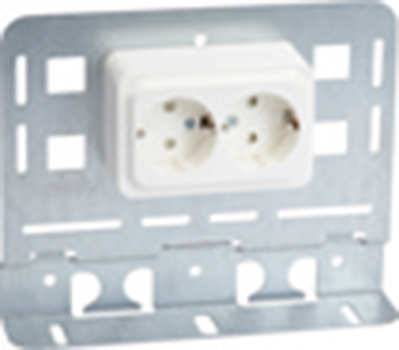

Outlet 2-way / W24 PG
Commercialized
Item number
734227
Local code:
*
GTIN:
7321677342273
Description:
Outlet 2-way / W24 PG
Wibe Group. 734227 - Wibe - outlet set - 2-way + W24 - steel pre-galvanized
Properties
Status product
Product status
Commercialized
Commercial and Web
Short description
Outlet 2-way / W24 PG
Medium description
Wibe - outlet set - 2-way + W24 - steel pre-galvanized
Material
Steel
Material type or surface treatment
Pre-galvanized
Environmental corrosion class
C2
Base
Activity
Cable support systems
Product family
Cable trays
Brand
Wibe
GTIN
7321677342273
ETIM (EC001004-Mounting plate for cable support system)
Model (EF000010)
Horizontal
Plate height (EF005176)
161 mm
Plate width (EF005175)
200 mm
Type of fastening (EF002442)
Screw mounting
Material (EF002169)
Steel
Stainless steel, pickled (EF006388)
No
Material quality (EF001257)
Other
Surface protection (EF000139)
Continuously galvanized
Logistic
Quantity pack 1
1
Weight pack 1
.36 kg
Length pack 1
200 mm
Width pack 1
50 mm
Height pack 1
161 mm
Customs code
85369095
Net weight
.36 kg
Country of origin
SE
Certification
ETIM class
EC001004
Environmental
GWP Total A1-A3
1.022 kgCO2e
Product downloads
Environmental Documents
Downloads
Environmental Products
| Corrosion class | C1 | C2 | C3 | C4 | C5 | CX | |
| Environmental corrosion | Very low | Low | Average | High | Very high | Extreme | |
| Examples of environments | Indoors | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | Buildings with almost permanent condensation and with high pollution | Industrial buildings with extreme humidity and aggressive atmosphere. |
| Outdoors | Atmospheres with low levels of airborne pollution. Rural areas. | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | ||
|
Wibe Group designation
Exceeds requirements. Extremely high durability.
Recommended very high durability ( >20 years)
Possible alternative. High durability (10-20 years) |
Electro-galvanized (EG) |
|
|
||||
| Pre-galvanized (PG) |
|
|
|
||||
| Zinc+ (Z+) |
|
|
|
|
|||
| Hot-dip galvanized (HDG) |
|
|
|
|
|
||
| Zinkpox (ZP) |
|
|
|
|
|
|
|
| Stainless steel AISI 304L(SS304) |
|
|
|
|
|
|
|
| Stainless steel AISI 316L (SS316) |
|
|
|
|
|
|
|
| Glass Fibre Reinforced Polymer (FRP/GRP) |
|
|
|
|
|
|
|
This table shows estimated values.
For more detailed advice, please contact technical support at Wibe Group
