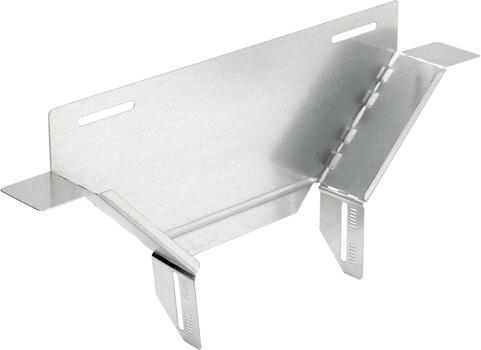

Vertical wall piece 35x100 PG

Commercialized

Item number

CSU33241002

Local code: *

GTIN: 3606481114600

Description: Vertical wall piece 35x100 PG

Wibe Group. CSU33241002 - Stago - vertical wall piece flat 35x100mm pre-galvanized

Data Sheet

Product status

Commercialized

Short description

Vertical wall piece 35x100 PG

Medium description

Stago - vertical wall piece flat 35x100mm pre-galvanized

Width

100 mm

Material

Steel

Material type or surface treatment

Pre-galvanized

Environmental corrosion class

Activity

Cable support systems

Product family

Cable trays

Brand

Stago

GTIN

3606481114600

Cable tray height (EF004822)

35 mm

Cable tray width (EF004820)

100 mm

Construction type (EF000767)

T-piece vertical falling crossed

Inner radius (EF004793)

100 mm

NATO (EF006059)

Model (EF000010)

Wide span model (EF006397)

Suitable for circuit integrity (EF007806)

Material (EF002169)

Steel

Stainless steel, pickled (EF006388)

Material quality (EF001257)

Surface protection (EF000139)

Continuously galvanized

Colour (EF000007)

RAL (EF000116)

ETIM class

EC001544

Environmental Documents

Item number

CSU33241002

Local code: *

GTIN: 3606481114600

Description: Vertical wall piece 35x100 PG

Data Sheet

Corrosion class		C1	C2	C3	C4	C5	CX
Environmental corrosion		Very low	Low	Average	High	Very high	Extreme
Examples of environments	Indoors	Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels.	Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses.	Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries.	High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards.	Buildings with almost permanent condensation and with high pollution	Industrial buildings with extreme humidity and aggressive atmosphere.
Examples of environments	Outdoors		Atmospheres with low levels of airborne pollution. Rural areas.	Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions.	Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas.	Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity	Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres.
Wibe Group designation Exceeds requirements. Extremely high durability. Recommended very high durability ( >20 years) Possible alternative. High durability (10-20 years)	Electro-galvanized (EG)
	Pre-galvanized (PG)
	Zinc+ (Z+)
	Hot-dip galvanized (HDG)
	Zinkpox (ZP)
	Stainless steel AISI 304L(SS304)
	Stainless steel AISI 316L (SS316)
	Glass Fibre Reinforced Polymer (FRP/GRP)

Vertical wall piece 35x100 PG
