Vertical wall piece 60x300 PG

/storage/97AD84A37F257BFCE52E3F4CC5F082A553344F08601A1FD7CBCAD36FAF11B559/f0b1fd368b4d4e969de18a283d49bcf8/jpg/media/930166c2308a4863aa3134eb3fcc2f93/CSU36243002.jpg
Commercialized

Item number

CSU36243002

Local code: *
GTIN: 8712186065613
Description: Vertical wall piece 60x300 PG

Environmental corrosion class

C2

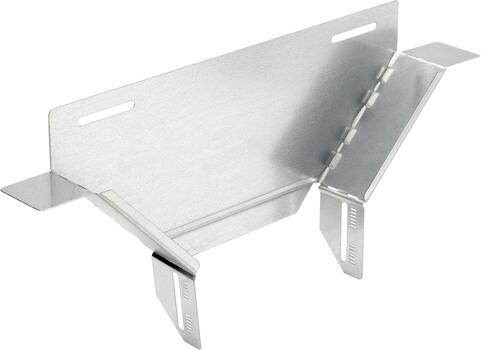

Wibe Group. CSU36243002 - Stago - vertical wall piece flat 60x300mm pre-galvanized

More Info

Properties

Status product
Product status
Commercialized
Commercial and Web
Short description
Vertical wall piece 60x300 PG
Medium description
Stago - vertical wall piece flat 60x300mm pre-galvanized
Width
300 mm
Material
Steel
Material type or surface treatment
Pre-galvanized
Environmental corrosion class
C2
Base
Activity
Cable support systems
Product family
Cable trays
Brand
Stago
GTIN
8712186065613
ETIM (EC001544-Tee for cable tray)
Cable tray height (EF004822)
60 mm
Cable tray width (EF004820)
300 mm
Construction type (EF000767)
T-piece vertical falling crossed
Inner radius (EF004793)
100 mm
NATO (EF006059)
No
Model (EF000010)
*
Wide span model (EF006397)
*
Suitable for circuit integrity (EF007806)
*
Material (EF002169)
Steel
Stainless steel, pickled (EF006388)
No
Material quality (EF001257)
*
Surface protection (EF000139)
Continuously galvanized
Colour (EF000007)
*
RAL (EF000116)
*
Logistic
Pack 1 type
Each
Quantity pack 1
1
Weight pack 1
0.84 kg
Length pack 1
640 mm
Width pack 1
241 mm
Height pack 1
11 mm
Customs code
7308909800
Net weight
0.84 kg
Country of origin
NL
Certification
ETIM class
EC001544
Environmental
GWP Total A1-A3
2.07 kgCO2e

Downloads

Environmental Products

Accessories

Item number

CSU36243002

Local code: *
GTIN: 8712186065613
Description: Vertical wall piece 60x300 PG

Environmental corrosion class

C2
Corrosion class C1 C2 C3 C4 C5 CX
Environmental corrosion Very low Low Average High Very high Extreme
Examples of environments Indoors Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. Buildings with almost permanent condensation and with high pollution Industrial buildings with extreme humidity and aggressive atmosphere.
Outdoors   Atmospheres with low levels of airborne pollution. Rural areas. Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres.
Wibe Group designation

Exceeds requirements. Extremely high durability.

Recommended very high durability ( >20 years)






Possible alternative. High durability (10-20 years)
 Electro-galvanized (EG)






Pre-galvanized (PG)







Zinc+ (Z+)





Hot-dip galvanized (HDG)









Zinkpox (ZP)









Stainless steel AISI 304L(SS304)









Stainless steel AISI 316L (SS316)






Glass Fibre Reinforced Polymer (FRP/GRP)







This table shows estimated values.
For more detailed advice, please contact technical support at Wibe Group
