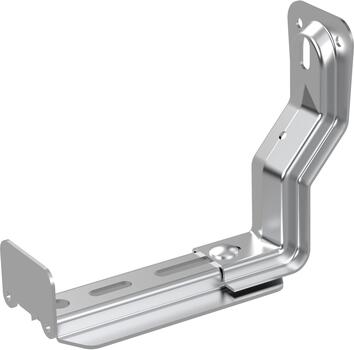

Adj.cantilever arm W1840-100 HDG white

Commercialized

Item number

783018

Local code: *

GTIN: 7321677830183

Description: Adj.cantilever arm W1840-100 HDG white

Wibe Group. 783018 - Wibe - adjustable cantilever arm W1840-100 - steel Zinkpox coated white

Data Sheet

Product status

Commercialized

Short description

Adj.cantilever arm W1840-100 HDG white

Medium description

Wibe - adjustable cantilever arm W1840-100 - steel Zinkpox coated white

Material

Steel

Material type or surface treatment

Zinkpox coated

Environmental corrosion class

Activity

Cable support systems

Product family

Support system

Brand

Wibe

GTIN

7321677830183

Length (EF001438)

113 mm

Width (EF000008)

60 mm

Height (EF000040)

160 mm

Suitable for cable management system width (EF008339)

100 - 100 mm

Model (EF000010)

Wall- and profile console

Angle (EF005434)

90 - 90 °

Load bearing capacity (EF002918)

* kN

Suitable for circuit integrity (EF007806)

Material (EF002169)

Steel

Material quality (EF001257)

Other

Surface protection (EF000139)

Hot-dip galvanized and coated

Colour (EF000007)

White

RAL (EF000116)

9010

Pack 1 type

Each

Quantity pack 1

Weight pack 1

0.36 kg

Length pack 1

118 mm

Width pack 1

70 mm

Height pack 1

162 mm

Customs code

73089059

Net weight

0.36 kg

Country of origin

ETIM class

EC000022

Environmental Documents

Item number

783018

Local code: *

GTIN: 7321677830183

Description: Adj.cantilever arm W1840-100 HDG white

Data Sheet

Corrosion class		C1	C2	C3	C4	C5	CX
Environmental corrosion		Very low	Low	Average	High	Very high	Extreme
Examples of environments	Indoors	Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels.	Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses.	Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries.	High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards.	Buildings with almost permanent condensation and with high pollution	Industrial buildings with extreme humidity and aggressive atmosphere.
Examples of environments	Outdoors		Atmospheres with low levels of airborne pollution. Rural areas.	Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions.	Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas.	Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity	Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres.
Wibe Group designation Exceeds requirements. Extremely high durability. Recommended very high durability ( >20 years) Possible alternative. High durability (10-20 years)	Electro-galvanized (EG)
	Pre-galvanized (PG)
	Zinc+ (Z+)
	Hot-dip galvanized (HDG)
	Zinkpox (ZP)
	Stainless steel AISI 304L(SS304)
	Stainless steel AISI 316L (SS316)
	Glass Fibre Reinforced Polymer (FRP/GRP)
