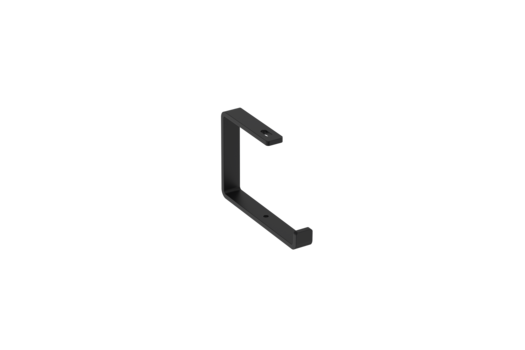

C-bracket 200 black
Item number
CSU0817329M905
Local code:
*
GTIN:
8720871004489
Description:
C-bracket 200 black
Properties
Status product
Product status
Commercialized
Commercial and Web
Short description
C-bracket 200 black
Medium description
Stago - KG281 C-bracket - 200mm - steel eg - black RAL9005/30
Length
215 mm
Width
150 mm
Height
45 mm
Material
Steel
Material type or surface treatment
Painted
Corrosion class
C2
Colour
Black RAL9005/30
Base
Activity
Cable support systems
Product family
Support system
Brand
Stago
Range
KG281
GTIN
8720871004489
ETIM (EC001003-Wall- and ceiling bracket for cable support system)
Suitable for cable management system width (EF008339)
* mm
Suitable for cable management system height (EF006391)
* mm
Model (EF000010)
Face out bracket (C-bracket)
Suitable for wire mesh tray (EF005163)
No
Suitable for cable ladder (EF005165)
No
Suitable for cable tray (EF005166)
Yes
Tray mounting (EF005212)
Screwable
Load bearing capacity (EF002918)
* kN
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Steel
Material quality (EF001257)
Other
Surface protection (EF000139)
Galvanic/electrolytic zinc plated and coated
Colour (EF000007)
Black
RAL (EF000116)
9005
Logistic
Customs code
73089098
Net weight
.94 kg
Country of origin
NL
Certification
ETIM class
EC001003
