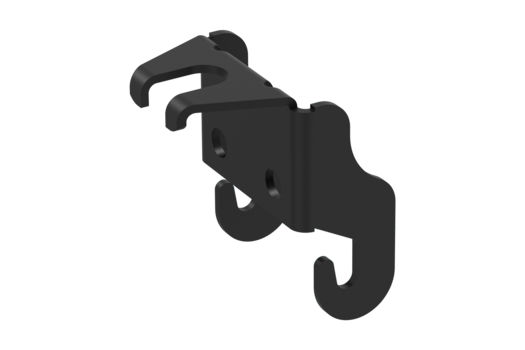

Ceiling bracket claw black
Commercialized
Item number
CSU0815029M905
Local code:
*
GTIN:
8720871004892
Description:
Ceiling bracket claw black
Properties
Status product
Product status
Commercialized
Commercial and Web
Short description
Ceiling bracket claw black
Medium description
Stago - KG281 claw - 58x45x44mm - steel pg - black RAL9005/30
Length
46 mm
Width
58 mm
Height
46 mm
Material
Steel
Material type or surface treatment
Painted
Environmental corrosion class
C2
Colour
Black RAL9005/30
Base
Activity
Cable support systems
Product family
Support system
Brand
Stago
Range
KG281
GTIN
8720871004892
ETIM (EC001003-Wall- and ceiling bracket for cable support system)
Suitable for cable management system width (EF008339)
* mm
Suitable for cable management system height (EF006391)
* mm
Model (EF000010)
*
Suitable for wire mesh tray (EF005163)
*
Suitable for cable ladder (EF005165)
*
Suitable for cable tray (EF005166)
*
Tray mounting (EF005212)
*
Load bearing capacity (EF002918)
* kN
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Steel
Material quality (EF001257)
Other
Surface protection (EF000139)
Continuously galvanized and coated
Colour (EF000007)
Black
RAL (EF000116)
9005
Logistic
Customs code
7308909800
Net weight
.05 kg
Country of origin
NL
Certification
ETIM class
EC001003
Product downloads
Environmental Documents
| Corrosion class | C1 | C2 | C3 | C4 | C5 | CX | |
| Environmental corrosion | Very low | Low | Average | High | Very high | Extreme | |
| Examples of environments | Indoors | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | Buildings with almost permanent condensation and with high pollution | Industrial buildings with extreme humidity and aggressive atmosphere. |
| Outdoors | Atmospheres with low levels of airborne pollution. Rural areas. | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | ||
|
Wibe Group designation
Exceeds requirements. Extremely high durability.
Recommended very high durability ( >20 years)
Possible alternative. High durability (10-20 years) |
Electro-galvanized (EG) |
|
|
||||
| Pre-galvanized (PG) |
|
|
|
||||
| Zinc+ (Z+) |
|
|
|
|
|||
| Hot-dip galvanized (HDG) |
|
|
|
|
|
||
| Zinkpox (ZP) |
|
|
|
|
|
|
|
| Stainless steel AISI 304L(SS304) |
|
|
|
|
|
|
|
| Stainless steel AISI 316L (SS316) |
|
|
|
|
|
|
|
| Glass Fibre Reinforced Polymer (FRP/GRP) |
|
|
|
|
|
|
|
This table shows estimated values.
For more detailed advice, please contact technical support at Wibe Group
