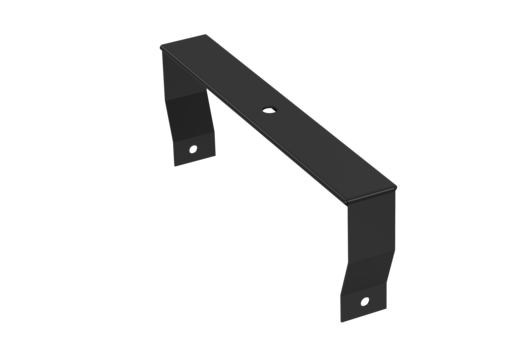

Channel bracket for tray cover 250 black
Commercialized
Item number
CSU0865400M905
Local code:
*
GTIN:
8720871004458
Description:
Channel bracket for tray cover 250 black
Properties
Status product
Product status
Commercialized
Commercial and Web
Short description
Channel bracket for tray cover 250 black
Medium description
Stago - KG281 tray bracket cover compatible - 250mm - steel pg - black RAL9005/30
Length
275 mm
Width
98 mm
Height
38 mm
Material
Steel
Material type or surface treatment
Painted
Corrosion class
C2
Colour
Black RAL9005/30
Base
Activity
Cable support systems
Product family
Support system
Brand
Stago
Range
KG281
GTIN
8720871004458
ETIM (EC001003-Wall- and ceiling bracket for cable support system)
Suitable for cable management system width (EF008339)
* mm
Suitable for cable management system height (EF006391)
* mm
Model (EF000010)
*
Suitable for wire mesh tray (EF005163)
*
Suitable for cable ladder (EF005165)
*
Suitable for cable tray (EF005166)
*
Tray mounting (EF005212)
*
Load bearing capacity (EF002918)
* kN
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Steel
Material quality (EF001257)
Other
Surface protection (EF000139)
Continuously galvanized and coated
Colour (EF000007)
Black
RAL (EF000116)
9005
Logistic
Customs code
73089098
Net weight
.3 kg
Country of origin
NL
Certification
ETIM class
EC001003
