Inner cantilever arm W17/40-200 Zinkpox
Commercialized
Item number
783067
Local code:
*
GTIN:
7321677830671
Description:

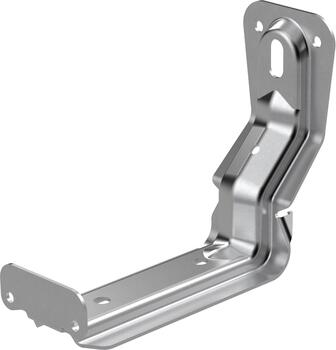

Inner cantilever arm W17/40-200 Zinkpox
Wibe Group. 783067 - Wibe - internal cantilever arm W17/40-200 - steel Zinkpox coated - white
Properties
Status product
Product status
Commercialized
Commercial and Web
Short description
Inner cantilever arm W17/40-200 Zinkpox
Medium description
Wibe - internal cantilever arm W17/40-200 - steel Zinkpox coated white
Material
Steel
Material type or surface treatment
Zinkpox coated
Corrosion class
C5-I
Base
Activity
Cable support systems
Product family
Support system
Brand
Wibe
GTIN
7321677830671
ETIM (EC000022-Bracket for cable support system)
Length (EF001438)
219 mm
Width (EF000008)
55 mm
Height (EF000040)
140 mm
Suitable for cable management system width (EF008339)
200 - 200 mm
Model (EF000010)
Wall- and profile console
Angle (EF005434)
90 - 90 °
Load bearing capacity (EF002918)
* kN
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Steel
Material quality (EF001257)
Other
Surface protection (EF000139)
Hot-dip galvanized and coated
Colour (EF000007)
White
RAL (EF000116)
9010
Logistic
Pack 1 type
Each
Quantity pack 1
1
Weight pack 1
.35 kg
Length pack 1
220 mm
Width pack 1
67 mm
Height pack 1
140 mm
Customs code
73089059
Net weight
.35 kg
Country of origin
SE
Certification
ETIM class
EC000022
Product downloads
Environmental Documents
