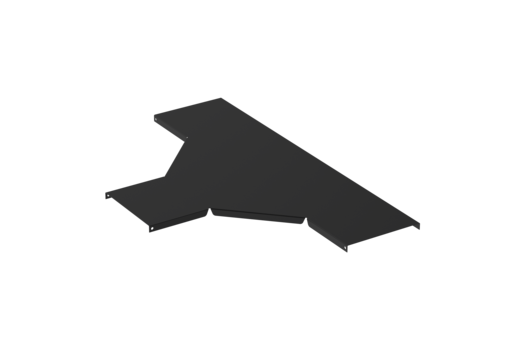

Fixed cover T-piece 120 black
Commercialized
Item number
CSU0852209M905
Local code:
*
GTIN:
8720871003314
Description:
Fixed cover T-piece 120 black
Properties
Status product
Product status
Commercialized
Commercial and Web
Short description
Fixed cover T-piece 120 black
Medium description
Stago - cover T-piece fixed - 120mm - steel pg - black RAL9005/30
Length
524 mm
Width
325 mm
Height
10 mm
Material
Steel
Material type or surface treatment
Painted
Environmental corrosion class
C2
Colour
Black RAL9005/30
Base
Activity
Cable support systems
Product family
Cable trays
Brand
Stago
GTIN
8720871003314
ETIM (EC002406-Tee cover for cable support system)
Width (EF000008)
* mm
Suitable for cable tray (EF005166)
*
Suitable for cable ladder (EF005165)
*
Type of fastening (EF002442)
*
Material (EF002169)
Steel
Stainless steel, pickled (EF006388)
No
Material quality (EF001257)
Other
Surface protection (EF000139)
Continuously galvanized and coated
Colour (EF000007)
Black
RAL (EF000116)
9005
Logistic
Customs code
73089098
Net weight
.66 kg
Country of origin
NL
Certification
ETIM class
EC002406
Product downloads
Environmental Documents
| Corrosion class | Environmental corrosion | Examples of typical environments in temperate climates (informative) | Wibe Group designation | ||
| Outdoors | Indoors | ||||
| C1 | Very low | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Electro-galvanized DIN 50961/ISO 2081 |
||
| C2 | Low | Atmospheres with low levels of airborne pollution. Rural areas. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Pre-galvanized Z 275 in accordance with EN 10346 |
|
| C3 | Average | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Areas with average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | Hot-dip galvanized after manufacture in accordance with EN-ISO 1461 |
Zinc+ coating |
| C4 | High | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Areas of high humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | ||
| C5 | Very high | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Buildings with almost permanent condensation and with high pollution | Zinkpox® HDG+powder coating |
|
| Stainless steel EN 1.4301/AISI 304 |
|||||
| CX | Extreme | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | Industrial buildings with extreme humidity and aggressive atmosphere. | Stainless steel EN 1.4404/AISI 316L |
|
