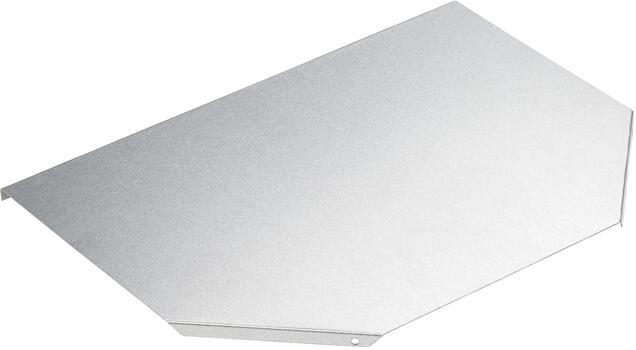

T piece cover 330

Commercialized

Item number

CSU30153302

Local code: *

GTIN: 8712186064746

Description: T piece cover 330

Wibe Group. CSU30153302 - Stago - cover t piece flat - 330 mm - steel - pre-galvanized

Data Sheet

Product status

Commercialized

Short description

T piece cover 330

Medium description

Stago - cover t piece flat - 330 mm - steel - pre-galvanized

Width

330 mm

Material

Steel

Material type or surface treatment

Pre-galvanized

Environmental corrosion class

Activity

Cable support systems

Product family

Cable trays

Brand

Stago

GTIN

8712186064746

Width (EF000008)

330 mm

Suitable for cable tray (EF005166)

Yes

Suitable for cable ladder (EF005165)

Type of fastening (EF002442)

Cover clamp

Material (EF002169)

Steel

Stainless steel, pickled (EF006388)

Material quality (EF001257)

Other

Surface protection (EF000139)

Continuously galvanized

Colour (EF000007)

Zinc

RAL (EF000116)

Weight pack 1

1.398 kg

Length pack 1

525 mm

Width pack 1

427 mm

Height pack 1

10 mm

Customs code

7308909800

Net weight

1.4 kg

ETIM class

EC002406

GWP Total A1-A3

3.45 kgCO2e

Environmental Documents

Item number

CSU30153302

Local code: *

GTIN: 8712186064746

Description: T piece cover 330

Data Sheet

Corrosion class		C1	C2	C3	C4	C5	CX
Environmental corrosion		Very low	Low	Average	High	Very high	Extreme
Examples of environments	Indoors	Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels.	Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses.	Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries.	High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards.	Buildings with almost permanent condensation and with high pollution	Industrial buildings with extreme humidity and aggressive atmosphere.
Examples of environments	Outdoors		Atmospheres with low levels of airborne pollution. Rural areas.	Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions.	Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas.	Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity	Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres.
Wibe Group designation Exceeds requirements. Extremely high durability. Recommended very high durability ( >20 years) Possible alternative. High durability (10-20 years)	Electro-galvanized (EG)
	Pre-galvanized (PG)
	Zinc+ (Z+)
	Hot-dip galvanized (HDG)
	Zinkpox (ZP)
	Stainless steel AISI 304L(SS304)
	Stainless steel AISI 316L (SS316)
	Glass Fibre Reinforced Polymer (FRP/GRP)
