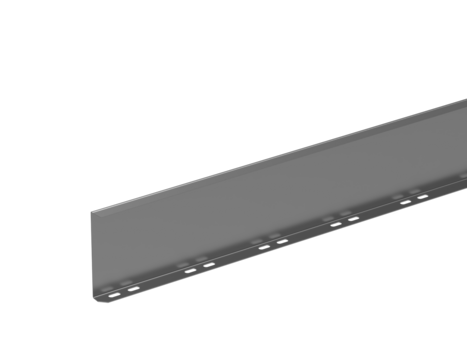

Separation wall H=110 T=1.0 L=3m Zplus
Commercialized
Item number
CSU81020000
Local code:
*
GTIN:
7321679000027
Description:
Separation wall H=110 T=1.0 L=3m Zplus
Wibe Group. CSU81020000 - Stago - separation wall - H=110 mm - steel - zinc+ - T=1 mm
Properties
Status product
Product status
Commercialized
Commercial and Web
Short description
Separation wall H=110 T=1.0 L=3m Zplus
Medium description
Stago - separation wall H=110 mm - T=1 mm L=3 m - steel zinc plus
Material
Steel
Material type or surface treatment
Zinc+
Environmental corrosion class
C4
Base
Activity
Cable support systems
Product family
Cable trays; Mesh trays
Brand
Stago
GTIN
7321679000027
ETIM (EC001000-Separation plate for cable support system)
Partition height (EF005362)
110 mm
Length (EF001438)
3000 mm
Model (EF000010)
L-profile
Mounting perforation (EF008150)
Yes
Type of fastening (EF002442)
Screwable
Suitable for wire mesh tray (EF005163)
Yes
Suitable for cable ladder (EF005165)
No
Suitable for cable tray (EF005166)
Yes
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Steel
Stainless steel, pickled (EF006388)
No
Material quality (EF001257)
Other
Surface protection (EF000139)
Hot-dip galvanized and coated
RAL (EF000116)
*
Colour (EF000007)
*
Logistic
Customs code
7308909800
Net weight
2.98 kg
Country of origin
NL
Certification
ETIM class
EC001000
Accessories
-
c4 -
c4Flange Nut M6 DT
Item number: CSU08461020
GTIN: 8712186073151
| Corrosion class | C1 | C2 | C3 | C4 | C5 | CX | |
| Environmental corrosion | Very low | Low | Average | High | Very high | Extreme | |
| Examples of environments | Indoors | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | Buildings with almost permanent condensation and with high pollution | Industrial buildings with extreme humidity and aggressive atmosphere. |
| Outdoors | Atmospheres with low levels of airborne pollution. Rural areas. | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | ||
|
Wibe Group designation
Exceeds requirements. Extremely high durability.
Recommended very high durability ( >20 years)
Possible alternative. High durability (10-20 years) |
Electro-galvanized (EG) |
|
|
||||
| Pre-galvanized (PG) |
|
|
|
||||
| Zinc+ (Z+) |
|
|
|
|
|||
| Hot-dip galvanized (HDG) |
|
|
|
|
|
||
| Zinkpox (ZP) |
|
|
|
|
|
|
|
| Stainless steel AISI 304L(SS304) |
|
|
|
|
|
|
|
| Stainless steel AISI 316L (SS316) |
|
|
|
|
|
|
|
| Glass Fibre Reinforced Polymer (FRP/GRP) |
|
|
|
|
|
|
|
This table shows estimated values.
For more detailed advice, please contact technical support at Wibe Group
