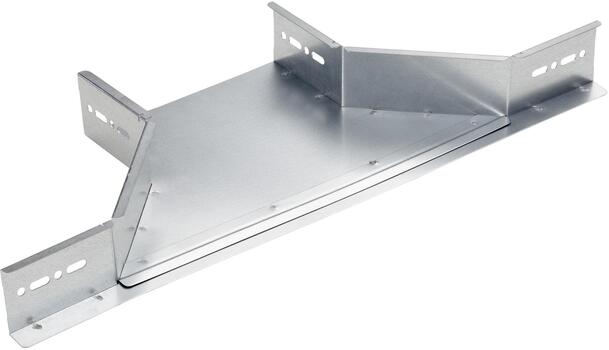

Branch. piece 200x110x1 AISI 304
Commercialized
Item number
CSU71672030
Local code:
*
GTIN:
3606480686474
Description:
Branch. piece 200x110x1 AISI 304
Wibe Group. CSU71672030 - Stago - branching piece formed 110x200mm stainless steel AISI 304
Properties
Status product
Product status
Commercialized
Commercial and Web
Short description
Branch. piece 200x110x1 AISI 304
Medium description
Stago - branching piece formed 110x200mm stainless steel AISI 304
Material
Stainless steel
Material type or surface treatment
AISI304
Environmental corrosion class
C5
Base
Activity
Cable support systems
Product family
Cable trays
Brand
Stago
GTIN
3606480686474
ETIM (EC001006-Add-on tee for cable tray)
Cable tray height (EF004822)
110 mm
Cable tray branch width (EF004819)
200 mm
Inner radius (EF004793)
100 mm
NATO (EF006059)
No
Model (EF000010)
Without connector
Wide span model (EF006397)
No
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Stainless steel
Stainless steel, pickled (EF006388)
Yes
Material quality (EF001257)
Rustproof and acidproof steel
Surface protection (EF000139)
Other
Colour (EF000007)
*
RAL (EF000116)
*
Logistic
Weight pack 1
2.624 kg
Length pack 1
222 mm
Width pack 1
603 mm
Height pack 1
113 mm
Customs code
7308909800
Net weight
2.62 kg
Country of origin
NL
Certification
ETIM class
EC001006
Product downloads
Environmental Documents
Downloads
Environmental Products
| Corrosion class | C1 | C2 | C3 | C4 | C5 | CX | |
| Environmental corrosion | Very low | Low | Average | High | Very high | Extreme | |
| Examples of environments | Indoors | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | Buildings with almost permanent condensation and with high pollution | Industrial buildings with extreme humidity and aggressive atmosphere. |
| Outdoors | Atmospheres with low levels of airborne pollution. Rural areas. | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | ||
|
Wibe Group designation
Exceeds requirements. Extremely high durability.
Recommended very high durability ( >20 years)
Possible alternative. High durability (10-20 years) |
Electro-galvanized (EG) |
|
|
||||
| Pre-galvanized (PG) |
|
|
|
||||
| Zinc+ (Z+) |
|
|
|
|
|||
| Hot-dip galvanized (HDG) |
|
|
|
|
|
||
| Zinkpox (ZP) |
|
|
|
|
|
|
|
| Stainless steel AISI 304L(SS304) |
|
|
|
|
|
|
|
| Stainless steel AISI 316L (SS316) |
|
|
|
|
|
|
|
| Glass Fibre Reinforced Polymer (FRP/GRP) |
|
|
|
|
|
|
|
This table shows estimated values.
For more detailed advice, please contact technical support at Wibe Group
