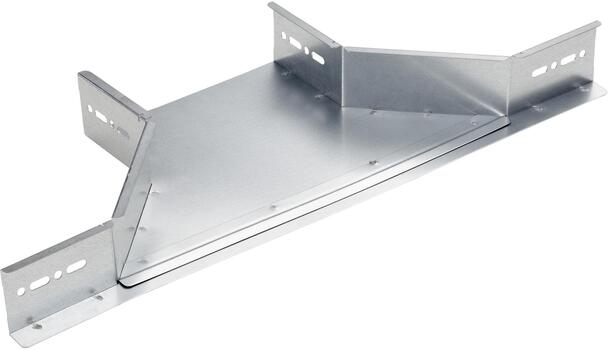

Branching piece Stainless steel 150 mm

Commercialized

Item number

CSU76671530

Local code: *

GTIN: 8712186093029

Description: Branching piece Stainless steel 150 mm

Wibe Group. CSU76671530 - Stago - branching piece formed 60x150mm stainless steel AISI 304

Data Sheet

Product status

Commercialized

Short description

Branching piece Stainless steel 150 mm

Medium description

Stago - branching piece formed 60x150mm stainless steel AISI 304

Width

150 mm

Material

Stainless steel

Material type or surface treatment

AISI304

Environmental corrosion class

Activity

Cable support systems

Product family

Cable trays

Brand

Stago

GTIN

8712186093029

Cable tray height (EF004822)

60 mm

Cable tray branch width (EF004819)

150 mm

Inner radius (EF004793)

100 mm

NATO (EF006059)

Model (EF000010)

Without connector

Wide span model (EF006397)

Suitable for circuit integrity (EF007806)

Material (EF002169)

Stainless steel

Stainless steel, pickled (EF006388)

Yes

Material quality (EF001257)

Rustproof and acidproof steel

Surface protection (EF000139)

Other

Colour (EF000007)

RAL (EF000116)

Weight pack 1

1 kg

Length pack 1

222 mm

Width pack 1

553 mm

Height pack 1

63 mm

Customs code

7308909800

Net weight

1 kg

ETIM class

EC001006

GWP Total A1-A3

3.29 kgCO2e

Environmental Documents

Item number

CSU76671530

Local code: *

GTIN: 8712186093029

Description: Branching piece Stainless steel 150 mm

Data Sheet

Corrosion class		C1	C2	C3	C4	C5	CX
Environmental corrosion		Very low	Low	Average	High	Very high	Extreme
Examples of environments	Indoors	Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels.	Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses.	Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries.	High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards.	Buildings with almost permanent condensation and with high pollution	Industrial buildings with extreme humidity and aggressive atmosphere.
Examples of environments	Outdoors		Atmospheres with low levels of airborne pollution. Rural areas.	Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions.	Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas.	Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity	Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres.
Wibe Group designation Exceeds requirements. Extremely high durability. Recommended very high durability ( >20 years) Possible alternative. High durability (10-20 years)	Electro-galvanized (EG)
	Pre-galvanized (PG)
	Zinc+ (Z+)
	Hot-dip galvanized (HDG)
	Zinkpox (ZP)
	Stainless steel AISI 304L(SS304)
	Stainless steel AISI 316L (SS316)
	Glass Fibre Reinforced Polymer (FRP/GRP)
