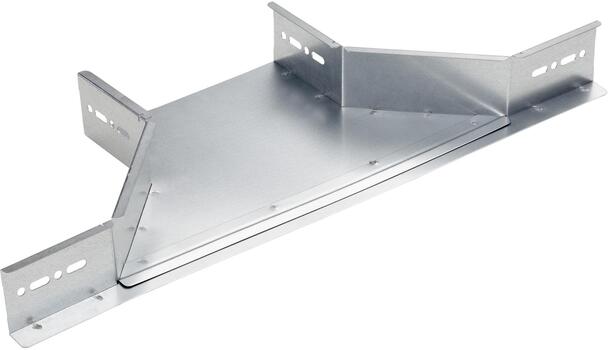

Branching piece Stainless steel 300 mm
Commercialized
Item number
CSU76673030
Local code:
*
GTIN:
8712186093050
Description:
Branching piece Stainless steel 300 mm
Wibe Group. CSU76673030 - Stago - branching piece formed 60x300mm stainless steel AISI 304
Properties
Status product
Product status
Commercialized
Commercial and Web
Short description
Branching piece Stainless steel 300 mm
Medium description
Stago - branching piece formed 60x300mm stainless steel AISI 304
Width
300 mm
Material
Stainless steel
Material type or surface treatment
AISI304
Environmental corrosion class
C5
Base
Activity
Cable support systems
Product family
Cable trays
Brand
Stago
GTIN
8712186093050
ETIM (EC001006-Add-on tee for cable tray)
Cable tray height (EF004822)
60 mm
Cable tray branch width (EF004819)
300 mm
Inner radius (EF004793)
100 mm
NATO (EF006059)
No
Model (EF000010)
Without connector
Wide span model (EF006397)
No
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Stainless steel
Stainless steel, pickled (EF006388)
Yes
Material quality (EF001257)
Rustproof and acidproof steel
Surface protection (EF000139)
Other
Colour (EF000007)
*
RAL (EF000116)
*
Logistic
Weight pack 1
1.3 kg
Length pack 1
222 mm
Width pack 1
703 mm
Height pack 1
63 mm
Customs code
7308909800
Net weight
1.3 kg
Country of origin
NL
Certification
ETIM class
EC001006
| Corrosion class | C1 | C2 | C3 | C4 | C5 | CX | |
| Environmental corrosion | Very low | Low | Average | High | Very high | Extreme | |
| Examples of environments | Indoors | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | Buildings with almost permanent condensation and with high pollution | Industrial buildings with extreme humidity and aggressive atmosphere. |
| Outdoors | Atmospheres with low levels of airborne pollution. Rural areas. | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | ||
|
Wibe Group designation
Exceeds requirements. Extremely high durability.
Recommended very high durability ( >20 years)
Possible alternative. High durability (10-20 years) |
Electro-galvanized (EG) |
|
|
||||
| Pre-galvanized (PG) |
|
|
|
||||
| Zinc+ (Z+) |
|
|
|
|
|||
| Hot-dip galvanized (HDG) |
|
|
|
|
|
||
| Zinkpox (ZP) |
|
|
|
|
|
|
|
| Stainless steel AISI 304L(SS304) |
|
|
|
|
|
|
|
| Stainless steel AISI 316L (SS316) |
|
|
|
|
|
|
|
| Glass Fibre Reinforced Polymer (FRP/GRP) |
|
|
|
|
|
|
|
This table shows estimated values.
For more detailed advice, please contact technical support at Wibe Group
