CSU70661530

Commercialized

Item number

CSU70661530

Local code: *

GTIN: 8712186093623

Description: CSU70661530

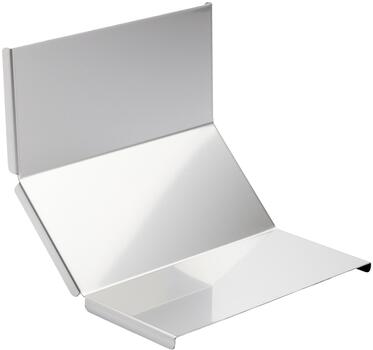

Wibe Group. CSU70661530 - Stago - cover internal rising piece 150mm stainless steel AISI 304

Data Sheet

Product status

Commercialized

Short description

CSU70661530

Medium description

Stago - cover internal rising piece 150mm stainless steel AISI 304

Width

150 mm

Material

Stainless steel

Material type or surface treatment

AISI304

Environmental corrosion class

Activity

Cable support systems

Product family

Cable trays

Brand

Stago

GTIN

8712186093623

Angle (EF001218)

Change of direction (EF005210)

Vertically rising

Width (EF000008)

150 mm

Length (EF001438)

* mm

Suitable for cable tray (EF005166)

Yes

Suitable for wire mesh tray (EF005163)

Suitable for cable ladder (EF005165)

Type of fastening (EF002442)

Cover clamp

Hinging (EF001076)

Suitable for circuit integrity (EF007806)

Material (EF002169)

Stainless steel

Material quality (EF001257)

Stainless steel 304 (1.4301)

Surface protection (EF000139)

Other

Colour (EF000007)

RAL (EF000116)

Weight pack 1

0.52 kg

Length pack 1

183 mm

Width pack 1

155 mm

Height pack 1

183 mm

Customs code

7308909800

Net weight

0.52 kg

ETIM class

EC002402

Item number

CSU70661530

Local code: *

GTIN: 8712186093623

Description: CSU70661530

Data Sheet

Corrosion class		C1	C2	C3	C4	C5	CX
Environmental corrosion		Very low	Low	Average	High	Very high	Extreme
Examples of environments	Indoors	Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels.	Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses.	Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries.	High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards.	Buildings with almost permanent condensation and with high pollution	Industrial buildings with extreme humidity and aggressive atmosphere.
Examples of environments	Outdoors		Atmospheres with low levels of airborne pollution. Rural areas.	Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions.	Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas.	Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity	Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres.
Wibe Group designation Exceeds requirements. Extremely high durability. Recommended very high durability ( >20 years) Possible alternative. High durability (10-20 years)	Electro-galvanized (EG)
	Pre-galvanized (PG)
	Zinc+ (Z+)
	Hot-dip galvanized (HDG)
	Zinkpox (ZP)
	Stainless steel AISI 304L(SS304)
	Stainless steel AISI 316L (SS316)
	Glass Fibre Reinforced Polymer (FRP/GRP)
