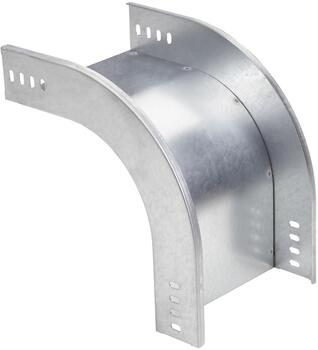

Fixed external riser 60x330 PG
Commercialized
Item number
CSU08665009
Local code:
*
GTIN:
8712186005190
Description:
Fixed external riser 60x330 PG
Wibe Group. CSU08665009 - Stago - external riser formed - 60x330 mm - steel - pre-galvanized
Properties
Status product
Product status
Commercialized
Commercial and Web
Short description
Fixed external riser 60x330 PG
Medium description
Stago - KG281 external riser fixed - 60x330mm - steel pg
Width
330 mm
Material
Steel
Material type or surface treatment
Pre-galvanized
Environmental corrosion class
C2
Base
Activity
Cable support systems
Product family
Cable trays
Brand
Stago
GTIN
8712186005190
ETIM (EC002400-Bend for cable tray)
Change of direction (EF005210)
Vertically rising
Angle (EF001218)
90°
Construction type (EF000767)
Bend rigid
Bend model (EF020423)
Smooth bend
With cover (EF007965)
No
Inner radius (EF004793)
120 mm
Cable tray height (EF004822)
60 mm
Cable tray width (EF004820)
330 mm
Material thickness (EF000386)
1 mm
Side wall perforation (EF001122)
Yes
Mounting perforation in bottom (EF004545)
No
NATO (EF006059)
No
Model (EF000010)
Without connector
Wide span model (EF006397)
No
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Steel
Stainless steel, pickled (EF006388)
No
Material quality (EF001257)
Other
Surface protection (EF000139)
Continuously galvanized
Colour (EF000007)
*
RAL (EF000116)
*
Logistic
Quantity pack 1
1
Weight pack 1
1.498 kg
Length pack 1
284 mm
Width pack 1
284 mm
Height pack 1
333 mm
GTIN pack 1
8712186005190
Customs code
7308909800
Net weight
1.5 kg
Certification
ETIM class
EC002400
Environmental
GWP Total A1-A3
3.7 kgCO2e
Product downloads
Environmental Documents
Downloads
Environmental Products
| Corrosion class | C1 | C2 | C3 | C4 | C5 | CX | |
| Environmental corrosion | Very low | Low | Average | High | Very high | Extreme | |
| Examples of environments | Indoors | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | Buildings with almost permanent condensation and with high pollution | Industrial buildings with extreme humidity and aggressive atmosphere. |
| Outdoors | Atmospheres with low levels of airborne pollution. Rural areas. | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | ||
|
Wibe Group designation
Exceeds requirements. Extremely high durability.
Recommended very high durability ( >20 years)
Possible alternative. High durability (10-20 years) |
Electro-galvanized (EG) |
|
|
||||
| Pre-galvanized (PG) |
|
|
|
||||
| Zinc+ (Z+) |
|
|
|
|
|||
| Hot-dip galvanized (HDG) |
|
|
|
|
|
||
| Zinkpox (ZP) |
|
|
|
|
|
|
|
| Stainless steel AISI 304L(SS304) |
|
|
|
|
|
|
|
| Stainless steel AISI 316L (SS316) |
|
|
|
|
|
|
|
| Glass Fibre Reinforced Polymer (FRP/GRP) |
|
|
|
|
|
|
|
This table shows estimated values.
For more detailed advice, please contact technical support at Wibe Group
