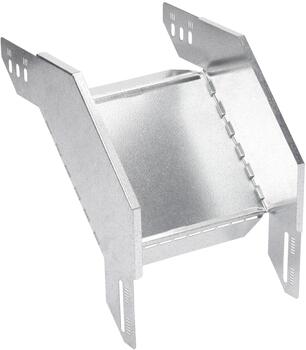

External bend closed 110X200
External bend closed 110X200
Table of contents
/storage/B2A920C2B300428C789B28C48D0CAE4ED11EA0C74E716520897921CEFBE2708D/dac1bc9d5c5f4f9580dbc5948185f89b/jpg/media/79b8e9884ca64332a008fc2047a7adb5/CSU31222002.jpg
Commercialized
Item number
CSU31222002
Local code:
*
GTIN:
3606489449445
Description:
External bend closed 110X200
Corrosion class
Wibe Group. CSU31222002 - Stago - external riser flat - 110x200 mm - steel - pre-galvanized
More Info
Contact seller
Contact support
Properties
Commercial and Web
Short description
External bend closed 110X200
Medium description
Stago - external riser flat - 110x200 mm - steel - pre-galvanized
Material
Steel
Material type or surface treatment
Pre-galvanized
Corrosion class
C2
Base
Activity
Cable support systems
Product family
Cable trays
Brand
Stago
GTIN
3606489449445
ETIM (EC002400-Bend for cable tray)
Change of direction (EF005210)
Vertically rising
Angle (EF001218)
90°
Construction type (EF000767)
Bend rigid
Bend model (EF020423)
Segmental bend
With cover (EF007965)
No
Inner radius (EF004793)
120 mm
Cable tray height (EF004822)
110 mm
Cable tray width (EF004820)
200 mm
Material thickness (EF000386)
1 mm
Side wall perforation (EF001122)
Yes
Mounting perforation in bottom (EF004545)
No
NATO (EF006059)
No
Model (EF000010)
Without connector
Wide span model (EF006397)
No
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Steel
Stainless steel, pickled (EF006388)
No
Material quality (EF001257)
Other
Surface protection (EF000139)
Continuously galvanized zinc-aluminium
Colour (EF000007)
*
RAL (EF000116)
*
Logistic
Pack 1 type
Each
Quantity pack 1
1
Weight pack 1
.852
Length pack 1
488 mm
Width pack 1
425
Height pack 1
10
Customs code
7308909800
Country of origin
NL
Certification
ETIM class
EC002400
Status product
Product status
Commercialized
Product downloads
Environmental Documents
CSU31222002_reach.pdf
pdf 77 kb
Accessories
c1
Screw M6x10 (pack 100) EZ
Item number:
CSU08462000
GTIN:
8712186028861
c2
Cover external bend 90 200mm
Item number:
CSU30222002
GTIN:
8712186065262
c5-m
Universal cover clip SS
Item number:
CSU08855000
GTIN:
8712186073809
c1
Nut flange type M6 (pack 100) EZ
Item number:
CSU08461000
GTIN:
8712186028854
