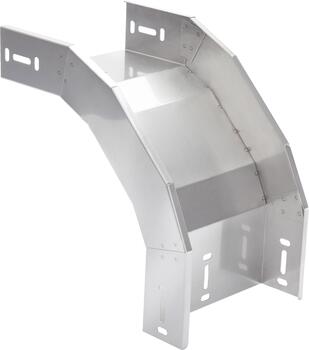

External bend Stainless steel 150 mm
Commercialized
Item number
CSU76651530
Local code:
*
GTIN:
8712186092787
Description:
External bend Stainless steel 150 mm
Wibe Group. CSU76651530 - Stago - external riser formed - 60x150 mm - stainless steel AISI 304
Properties
Commercial and Web
Short description
External bend Stainless steel 150 mm
Medium description
Stago - external riser formed - 60x150 mm - stainless steel AISI 304
Width
150
Material
Stainless steel
Material type or surface treatment
AISI304
Corrosion class
C5-I
Base
Activity
Cable support systems
Product family
Cable trays
Brand
Stago
GTIN
8712186092787
ETIM (EC002400-Bend for cable tray)
Change of direction (EF005210)
Rising/descending
Angle (EF001218)
90°
Construction type (EF000767)
Bend rigid
Bend model (EF020423)
Segmental bend
With cover (EF007965)
No
Inner radius (EF004793)
120 mm
Cable tray height (EF004822)
60 mm
Cable tray width (EF004820)
150 mm
Material thickness (EF000386)
1 mm
Side wall perforation (EF001122)
Yes
Mounting perforation in bottom (EF004545)
No
NATO (EF006059)
No
Model (EF000010)
Without connector
Wide span model (EF006397)
No
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Stainless steel
Stainless steel, pickled (EF006388)
Yes
Material quality (EF001257)
Rustproof and acidproof steel
Surface protection (EF000139)
Other
Colour (EF000007)
*
RAL (EF000116)
*
Logistic
Quantity pack 1
1
Weight pack 1
1.12
Length pack 1
300 mm
Width pack 1
153
Height pack 1
300
GTIN pack 1
8712186092787
Customs code
7308909800
Certification
ETIM class
EC002400
Status product
Product status
Commercialized
