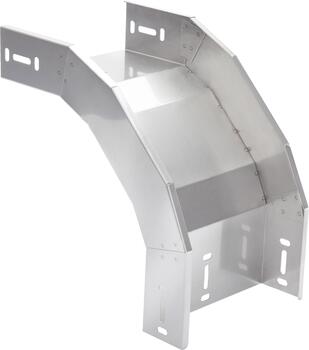

External bend Stainless steel 200 mm
Commercialized
Item number
CSU76652030
Local code:
*
GTIN:
8712186092800
Description:
External bend Stainless steel 200 mm
Wibe Group. CSU76652030 - Stago - external riser formed - 60x200 mm - stainless steel AISI 304
Properties
Status product
Product status
Commercialized
Commercial and Web
Short description
External bend Stainless steel 200 mm
Medium description
Stago - external riser formed - 60x200 mm - stainless steel AISI 304
Width
200 mm
Material
Stainless steel
Material type or surface treatment
AISI304
Corrosion class
C5-I
Base
Activity
Cable support systems
Product family
Cable trays
Brand
Stago
GTIN
8712186092800
ETIM (EC002400-Bend for cable tray)
Change of direction (EF005210)
Vertically descending
Angle (EF001218)
90°
Construction type (EF000767)
Bend rigid
Bend model (EF020423)
Segmental bend
With cover (EF007965)
No
Inner radius (EF004793)
120 mm
Cable tray height (EF004822)
60 mm
Cable tray width (EF004820)
200 mm
Material thickness (EF000386)
1 mm
Side wall perforation (EF001122)
Yes
Mounting perforation in bottom (EF004545)
No
NATO (EF006059)
No
Model (EF000010)
Without connector
Wide span model (EF006397)
No
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Stainless steel
Stainless steel, pickled (EF006388)
Yes
Material quality (EF001257)
Rustproof and acidproof steel
Surface protection (EF000139)
Other
Colour (EF000007)
*
RAL (EF000116)
*
Logistic
Quantity pack 1
1
Weight pack 1
1.24 kg
Length pack 1
300 mm
Width pack 1
203 mm
Height pack 1
300 mm
GTIN pack 1
8712186092800
Customs code
7308909800
Net weight
1.24 kg
Country of origin
NL
Certification
ETIM class
EC002400
