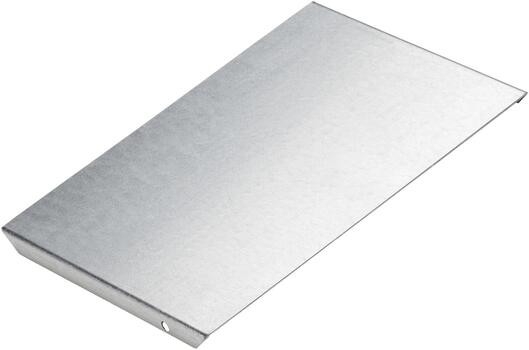

External Riser Cover 600 Zinc+
Commercialized
Item number
CSU80226004
Local code:
*
GTIN:
3606480784248
Description:
External Riser Cover 600 Zinc+
Wibe Group. CSU80226004 - Stago - cover for external riser - 600 mm - sheet steel - zinc+ - T=1 - RAL 9010
Properties
Status product
Product status
Commercialized
Commercial and Web
Short description
External Riser Cover 600 Zinc+
Medium description
Stago - cover for external riser - 600 mm - sheet steel - zinc+ - T=1 - RAL 9010
Width
600 mm
Material
Steel
Material type or surface treatment
Zinc+
Environmental corrosion class
C4
Base
Activity
Cable support systems
Product family
Cable trays
Brand
Stago
GTIN
3606480784248
ETIM (EC002402-Bend cover for cable support system)
Angle (EF001218)
*
Change of direction (EF005210)
Vertically rising
Width (EF000008)
600 mm
Length (EF001438)
* mm
Suitable for cable tray (EF005166)
Yes
Suitable for wire mesh tray (EF005163)
No
Suitable for cable ladder (EF005165)
No
Type of fastening (EF002442)
Snapped on
Hinging (EF001076)
No
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Steel
Material quality (EF001257)
Other
Surface protection (EF000139)
Hot-dip galvanized and coated
Colour (EF000007)
*
RAL (EF000116)
*
Logistic
Weight pack 1
1.074 kg
Length pack 1
148 mm
Width pack 1
600 mm
Height pack 1
10 mm
Customs code
7308909800
Net weight
1.07 kg
Country of origin
NL
Certification
ETIM class
EC002402
| Corrosion class | C1 | C2 | C3 | C4 | C5 | CX | |
| Environmental corrosion | Very low | Low | Average | High | Very high | Extreme | |
| Examples of environments | Indoors | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | Buildings with almost permanent condensation and with high pollution | Industrial buildings with extreme humidity and aggressive atmosphere. |
| Outdoors | Atmospheres with low levels of airborne pollution. Rural areas. | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | ||
|
Wibe Group designation
Exceeds requirements. Extremely high durability.
Recommended very high durability ( >20 years)
Possible alternative. High durability (10-20 years) |
Electro-galvanized (EG) |
|
|
||||
| Pre-galvanized (PG) |
|
|
|
||||
| Zinc+ (Z+) |
|
|
|
|
|||
| Hot-dip galvanized (HDG) |
|
|
|
|
|
||
| Zinkpox (ZP) |
|
|
|
|
|
|
|
| Stainless steel AISI 304L(SS304) |
|
|
|
|
|
|
|
| Stainless steel AISI 316L (SS316) |
|
|
|
|
|
|
|
| Glass Fibre Reinforced Polymer (FRP/GRP) |
|
|
|
|
|
|
|
This table shows estimated values.
For more detailed advice, please contact technical support at Wibe Group
