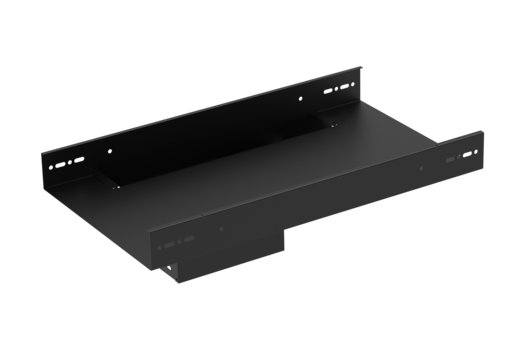

Fixed vert. wall piece 60x330-200 black
Commercialized
Item number
CSU0872569M905
Local code:
*
GTIN:
8720871004267
Description:
Fixed vert. wall piece 60x330-200 black
Properties
Status product
Product status
Commercialized
Commercial and Web
Short description
Fixed vert. wall piece 60x330-200 black
Medium description
Stago - KG281 vertical wall piece fixed 60x330-200mm - steel pg - black RAL9005/30
Length
601 mm
Width
261 mm
Height
333 mm
Material
Steel
Material type or surface treatment
Painted
Environmental corrosion class
C2
Colour
Black RAL9005/30
Base
Activity
Cable support systems
Product family
Cable trays
Brand
Stago
Range
KG281
GTIN
8720871004267
ETIM (EC001544-Tee for cable tray)
Cable tray height (EF004822)
60 mm
Cable tray width (EF004820)
330 mm
Construction type (EF000767)
T-piece vertical falling along
Inner radius (EF004793)
100 mm
NATO (EF006059)
No
Model (EF000010)
Without connector
Wide span model (EF006397)
*
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Steel
Stainless steel, pickled (EF006388)
No
Material quality (EF001257)
Other
Surface protection (EF000139)
Continuously galvanized and coated
Colour (EF000007)
Black
RAL (EF000116)
9005
Logistic
Customs code
73089098
Net weight
3.27 kg
Country of origin
NL
Certification
ETIM class
EC001544
Product downloads
Environmental Documents
| Corrosion class | C1 | C2 | C3 | C4 | C5 | CX | |
| Environmental corrosion | Very low | Low | Average | High | Very high | Extreme | |
| Examples of environments | Indoors | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | Buildings with almost permanent condensation and with high pollution | Industrial buildings with extreme humidity and aggressive atmosphere. |
| Outdoors | Atmospheres with low levels of airborne pollution. Rural areas. | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | ||
|
Wibe Group designation
Exceeds requirements. Extremely high durability.
Recommended very high durability ( >20 years)
Possible alternative. High durability (10-20 years) |
Electro-galvanized (EG) |
|
|
||||
| Pre-galvanized (PG) |
|
|
|
||||
| Zinc+ (Z+) |
|
|
|
|
|||
| Hot-dip galvanized (HDG) |
|
|
|
|
|
||
| Zinkpox (ZP) |
|
|
|
|
|
|
|
| Stainless steel AISI 304L(SS304) |
|
|
|
|
|
|
|
| Stainless steel AISI 316L (SS316) |
|
|
|
|
|
|
|
| Glass Fibre Reinforced Polymer (FRP/GRP) |
|
|
|
|
|
|
|
This table shows estimated values.
For more detailed advice, please contact technical support at Wibe Group
