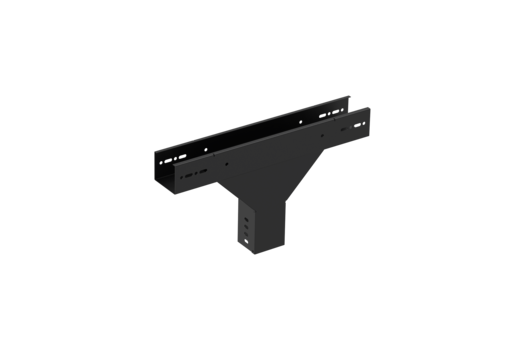

Fixed vert. wall piece 60x70-70 black

Commercialized

Item number

CSU0872129M905

Local code: *

GTIN: 8720871004151

Description: Fixed vert. wall piece 60x70-70 black

Data Sheet

Product status

Commercialized

Short description

Fixed vert. wall piece 60x70-70 black

Medium description

Stago - KG281 vertical wall piece fixed 60x70-70mm - steel pg - black RAL9005/30

Length

471 mm

Width

261 mm

Height

73 mm

Material

Steel

Material type or surface treatment

Painted

Environmental corrosion class

Colour

Black RAL9005

Activity

Cable support systems

Product family

Cable trays

Brand

Stago

Range

KG281

GTIN

8720871004151

Cable tray height (EF004822)

60 mm

Cable tray width (EF004820)

70 mm

Construction type (EF000767)

T-piece vertical falling along

Inner radius (EF004793)

100 mm

NATO (EF006059)

Model (EF000010)

Without connector

Wide span model (EF006397)

Suitable for circuit integrity (EF007806)

Material (EF002169)

Steel

Stainless steel, pickled (EF006388)

Material quality (EF001257)

Other

Surface protection (EF000139)

Continuously galvanized and coated

Colour (EF000007)

Black

RAL (EF000116)

9005

Customs code

73089098

Net weight

1.43 kg

Country of origin

ETIM class

EC001544

GWP Total A1-A3

5.714 kgCO2e

Environmental Documents

Item number

CSU0872129M905

Local code: *

GTIN: 8720871004151

Description: Fixed vert. wall piece 60x70-70 black

Data Sheet

Corrosion class		C1	C2	C3	C4	C5	CX
Environmental corrosion		Very low	Low	Average	High	Very high	Extreme
Examples of environments	Indoors	Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels.	Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses.	Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries.	High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards.	Buildings with almost permanent condensation and with high pollution	Industrial buildings with extreme humidity and aggressive atmosphere.
Examples of environments	Outdoors		Atmospheres with low levels of airborne pollution. Rural areas.	Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions.	Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas.	Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity	Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres.
Wibe Group designation Exceeds requirements. Extremely high durability. Recommended very high durability ( >20 years) Possible alternative. High durability (10-20 years)	Electro-galvanized (EG)
	Pre-galvanized (PG)
	Zinc+ (Z+)
	Hot-dip galvanized (HDG)
	Zinkpox (ZP)
	Stainless steel AISI 304L(SS304)
	Stainless steel AISI 316L (SS316)
	Glass Fibre Reinforced Polymer (FRP/GRP)
