HOEKSTUK VLAK 200 H=85 ZM

Commercialized

Item number

CSU88062004

Local code: *

GTIN: 3606481116000

Description: HOEKSTUK VLAK 200 H=85 ZM

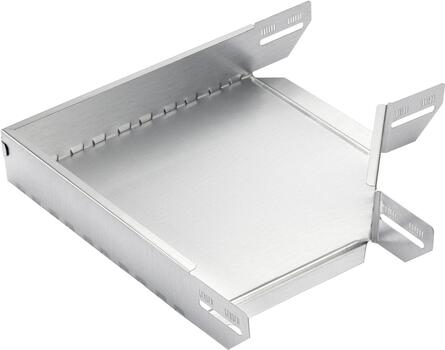

Wibe Group. CSU88062004 - Stago - horizontal bend 90° flat 85x200mm Zinc+

Data Sheet

Product status

Commercialized

Short description

HOEKSTUK VLAK 200 H=85 ZM

Medium description

Stago - horizontal bend 90° flat 85x200mm Zinc+

Width

200 mm

Material

Steel

Material type or surface treatment

Zinc+

Environmental corrosion class

Activity

Cable support systems

Product family

Cable trays

Brand

Stago

GTIN

3606481116000

Change of direction (EF005210)

Horizontal

Angle (EF001218)

90°

Construction type (EF000767)

Bend rigid

Bend model (EF020423)

Segmental bend

With cover (EF007965)

Inner radius (EF004793)

100 mm

Cable tray height (EF004822)

85 mm

Cable tray width (EF004820)

200 mm

Material thickness (EF000386)

1 mm

Side wall perforation (EF001122)

Mounting perforation in bottom (EF004545)

NATO (EF006059)

Model (EF000010)

Without connector

Wide span model (EF006397)

Suitable for circuit integrity (EF007806)

Material (EF002169)

Steel

Stainless steel, pickled (EF006388)

Material quality (EF001257)

Other

Surface protection (EF000139)

Galvanic/electrolytic zinc plated and coated

Colour (EF000007)

RAL (EF000116)

Quantity pack 1

Weight pack 1

1.396 kg

Length pack 1

408 mm

Width pack 1

408 mm

Height pack 1

85 mm

GTIN pack 1

3606481116000

Customs code

7308909800

Net weight

1.4 kg

Country of origin

ETIM class

EC002400

GWP Total A1-A3

3.16892 kgCO2e

Environmental Documents

Item number

CSU88062004

Local code: *

GTIN: 3606481116000

Description: HOEKSTUK VLAK 200 H=85 ZM

Data Sheet

Corrosion class		C1	C2	C3	C4	C5	CX
Environmental corrosion		Very low	Low	Average	High	Very high	Extreme
Examples of environments	Indoors	Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels.	Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses.	Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries.	High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards.	Buildings with almost permanent condensation and with high pollution	Industrial buildings with extreme humidity and aggressive atmosphere.
Examples of environments	Outdoors		Atmospheres with low levels of airborne pollution. Rural areas.	Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions.	Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas.	Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity	Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres.
Wibe Group designation Exceeds requirements. Extremely high durability. Recommended very high durability ( >20 years) Possible alternative. High durability (10-20 years)	Electro-galvanized (EG)
	Pre-galvanized (PG)
	Zinc+ (Z+)
	Hot-dip galvanized (HDG)
	Zinkpox (ZP)
	Stainless steel AISI 304L(SS304)
	Stainless steel AISI 316L (SS316)
	Glass Fibre Reinforced Polymer (FRP/GRP)
