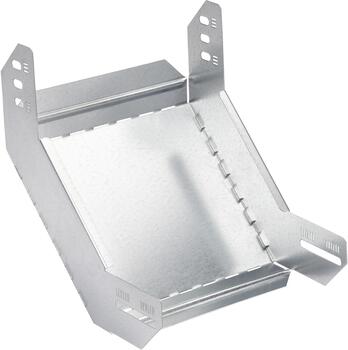

Int riser 60x150mm 1.5mm HDG
Commercialized
Item number
CSU362315126
Local code:
*
GTIN:
3606489448882
Description:
Int riser 60x150mm 1.5mm HDG
Wibe Group. CSU362315126 - Stago - internal riser - 60x150 mm - 1.5 mm - steel - hot-dip galvanized
Properties
Status product
Product status
Commercialized
Commercial and Web
Short description
Int riser 60x150mm 1.5mm HDG
Medium description
Stago - internal riser - 60x150 mm - 1.5 mm - steel - hot-dip galvanized
Width
150 mm
Material
Steel
Material type or surface treatment
Hot-dip galvanized
Environmental corrosion class
C4
Base
Activity
Cable support systems
Product family
Cable trays
Brand
Stago
GTIN
3606489448882
ETIM (EC002400-Bend for cable tray)
Change of direction (EF005210)
Vertically rising
Angle (EF001218)
90°
Construction type (EF000767)
Bend rigid
Bend model (EF020423)
Segmental bend
With cover (EF007965)
No
Inner radius (EF004793)
180 mm
Cable tray height (EF004822)
60 mm
Cable tray width (EF004820)
150 mm
Material thickness (EF000386)
1.5 mm
Side wall perforation (EF001122)
No
Mounting perforation in bottom (EF004545)
No
NATO (EF006059)
No
Model (EF000010)
Without connector
Wide span model (EF006397)
No
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Steel
Stainless steel, pickled (EF006388)
No
Material quality (EF001257)
Other
Surface protection (EF000139)
Hot-dip galvanized
Colour (EF000007)
*
RAL (EF000116)
*
Logistic
Quantity pack 1
1
Weight pack 1
1.007 kg
Length pack 1
367 mm
Width pack 1
270 mm
Height pack 1
2 mm
GTIN pack 1
3606489448882
Customs code
7308909800
Net weight
1.01 kg
Country of origin
NL
Certification
ETIM class
EC002400
| Corrosion class | C1 | C2 | C3 | C4 | C5 | CX | |
| Environmental corrosion | Very low | Low | Average | High | Very high | Extreme | |
| Examples of environments | Indoors | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | Buildings with almost permanent condensation and with high pollution | Industrial buildings with extreme humidity and aggressive atmosphere. |
| Outdoors | Atmospheres with low levels of airborne pollution. Rural areas. | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | ||
|
Wibe Group designation
Exceeds requirements. Extremely high durability.
Recommended very high durability ( >20 years)
Possible alternative. High durability (10-20 years) |
Electro-galvanized (EG) |
|
|
||||
| Pre-galvanized (PG) |
|
|
|
||||
| Zinc+ (Z+) |
|
|
|
|
|||
| Hot-dip galvanized (HDG) |
|
|
|
|
|
||
| Zinkpox (ZP) |
|
|
|
|
|
|
|
| Stainless steel AISI 304L(SS304) |
|
|
|
|
|
|
|
| Stainless steel AISI 316L (SS316) |
|
|
|
|
|
|
|
| Glass Fibre Reinforced Polymer (FRP/GRP) |
|
|
|
|
|
|
|
This table shows estimated values.
For more detailed advice, please contact technical support at Wibe Group
