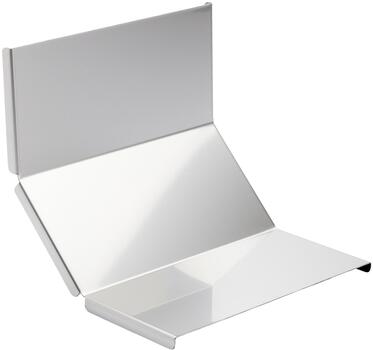

Intnal bend cov ,Stainless 120 mm
Commercialized
Item number
CSU70661230
Local code:
*
GTIN:
8712186091995
Description:
Intnal bend cov ,Stainless 120 mm
Wibe Group. CSU70661230 - Stago - cover internal rising piece 120mm stainless steel AISI 304
Properties
Status product
Product status
Commercialized
Commercial and Web
Short description
Intnal bend cov ,Stainless 120 mm
Medium description
Stago - cover internal rising piece 120mm stainless steel AISI 304
Width
120 mm
Material
Stainless steel
Material type or surface treatment
AISI304
Environmental corrosion class
C5
Base
Activity
Cable support systems
Product family
Cable trays
Brand
Stago
Range
ES114
GTIN
8712186091995
ETIM (EC002402-Bend cover for cable support system)
Angle (EF001218)
*
Change of direction (EF005210)
Vertically rising
Width (EF000008)
120 mm
Length (EF001438)
* mm
Suitable for cable tray (EF005166)
Yes
Suitable for wire mesh tray (EF005163)
No
Suitable for cable ladder (EF005165)
No
Type of fastening (EF002442)
Cover clamp
Hinging (EF001076)
No
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Stainless steel
Material quality (EF001257)
Stainless steel 304 (1.4301)
Surface protection (EF000139)
Other
Colour (EF000007)
*
RAL (EF000116)
*
Logistic
Weight pack 1
.4 kg
Length pack 1
183 mm
Width pack 1
125 mm
Height pack 1
183 mm
Customs code
7308909800
Net weight
.4 kg
Certification
ETIM class
EC002402
Product downloads
Environmental Documents
Downloads
Environmental Products
| Corrosion class | Environmental corrosion | Examples of typical environments in temperate climates (informative) | Wibe Group designation | ||
| Outdoors | Indoors | ||||
| C1 | Very low | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Electro-galvanized DIN 50961/ISO 2081 |
||
| C2 | Low | Atmospheres with low levels of airborne pollution. Rural areas. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Pre-galvanized Z 275 in accordance with EN 10346 |
|
| C3 | Average | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Areas with average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | Hot-dip galvanized after manufacture in accordance with EN-ISO 1461 |
Zinc+ coating |
| C4 | High | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Areas of high humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | ||
| C5 | Very high | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Buildings with almost permanent condensation and with high pollution | Zinkpox® HDG+powder coating |
|
| Stainless steel EN 1.4301/AISI 304 |
|||||
| CX | Extreme | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | Industrial buildings with extreme humidity and aggressive atmosphere. | Stainless steel EN 1.4404/AISI 316L |
|
