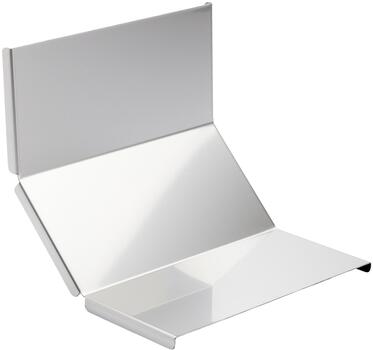

Intnal bend cov ,Stainless 70 mm
Commercialized
Item number
CSU70660730
Local code:
*
GTIN:
8712186091971
Description:
Intnal bend cov ,Stainless 70 mm
Wibe Group. CSU70660730 - Stago - cover internal rising piece 70mm stainless steel AISI 304
Properties
Status product
Product status
Commercialized
Commercial and Web
Short description
Intnal bend cov ,Stainless 70 mm
Medium description
Stago - cover internal rising piece 70mm stainless steel AISI 304
Width
70 mm
Material
Stainless steel
Material type or surface treatment
AISI304
Environmental corrosion class
C5
Base
Activity
Cable support systems
Product family
Cable trays
Brand
Stago
Range
ES114
GTIN
8712186091971
ETIM (EC002402-Bend cover for cable support system)
Angle (EF001218)
*
Change of direction (EF005210)
Vertically rising
Width (EF000008)
70 mm
Length (EF001438)
* mm
Suitable for cable tray (EF005166)
Yes
Suitable for wire mesh tray (EF005163)
No
Suitable for cable ladder (EF005165)
No
Type of fastening (EF002442)
Cover clamp
Hinging (EF001076)
No
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Stainless steel
Material quality (EF001257)
Stainless steel 304 (1.4301)
Surface protection (EF000139)
Other
Colour (EF000007)
*
RAL (EF000116)
*
Logistic
Weight pack 1
.26 kg
Length pack 1
183 mm
Width pack 1
75 mm
Height pack 1
183 mm
Customs code
7308909800
Net weight
.26 kg
Certification
ETIM class
EC002402
Product downloads
Environmental Documents
Downloads
Environmental Products
| Corrosion class | C1 | C2 | C3 | C4 | C5 | CX | |
| Environmental corrosion | Very low | Low | Average | High | Very high | Extreme | |
| Examples of environments | Indoors | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | Buildings with almost permanent condensation and with high pollution | Industrial buildings with extreme humidity and aggressive atmosphere. |
| Outdoors | Atmospheres with low levels of airborne pollution. Rural areas. | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | ||
|
Wibe Group designation
Exceeds requirements. Extremely high durability.
Recommended very high durability ( >20 years)
Possible alternative. High durability (10-20 years) |
Electro-galvanized (EG) |
|
|
||||
| Pre-galvanized (PG) |
|
|
|
||||
| Zinc+ (Z+) |
|
|
|
|
|||
| Hot-dip galvanized (HDG) |
|
|
|
|
|
||
| Zinkpox (ZP) |
|
|
|
|
|
|
|
| Stainless steel AISI 304L(SS304) |
|
|
|
|
|
|
|
| Stainless steel AISI 316L (SS316) |
|
|
|
|
|
|
|
| Glass Fibre Reinforced Polymer (FRP/GRP) |
|
|
|
|
|
|
|
This table shows estimated values.
For more detailed advice, please contact technical support at Wibe Group
