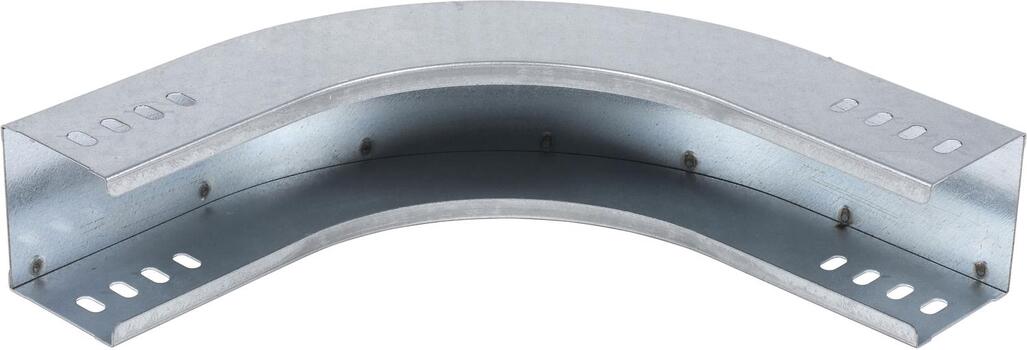

Rising piece 70 R1013/70
Commercialized
Item number
CSU08641019
Local code:
*
GTIN:
8712186004827
Description:
Rising piece 70 R1013/70
Wibe Group. CSU08641019 - Stago - internal riser formed - 60x70 mm - steel - pre-galvanized - RAL1013
Properties
Status product
Product status
Commercialized
Commercial and Web
Short description
Rising piece 70 R1013/70
Medium description
Stago - internal riser formed - 60x70 mm - steel - pre-galvanized - RAL1013
Width
70 mm
Material
Steel
Material type or surface treatment
Painted
Corrosion class
C2
Base
Activity
Cable support systems
Product family
Cable trays
Brand
Stago
GTIN
8712186004827
ETIM (EC002400-Bend for cable tray)
Change of direction (EF005210)
Vertically rising
Angle (EF001218)
90°
Construction type (EF000767)
Bend rigid
Bend model (EF020423)
Smooth bend
With cover (EF007965)
No
Inner radius (EF004793)
180 mm
Cable tray height (EF004822)
60 mm
Cable tray width (EF004820)
70 mm
Material thickness (EF000386)
1 mm
Side wall perforation (EF001122)
No
Mounting perforation in bottom (EF004545)
No
NATO (EF006059)
No
Model (EF000010)
Without connector
Wide span model (EF006397)
No
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Steel
Stainless steel, pickled (EF006388)
No
Material quality (EF001257)
Other
Surface protection (EF000139)
Continuously galvanized and coated
Colour (EF000007)
White
RAL (EF000116)
1013
Logistic
Quantity pack 1
1
Weight pack 1
.784 kg
Length pack 1
284 mm
Width pack 1
284 mm
Height pack 1
73 mm
GTIN pack 1
8712186004827
Customs code
7308909800
Net weight
.78 kg
Certification
ETIM class
EC002400
