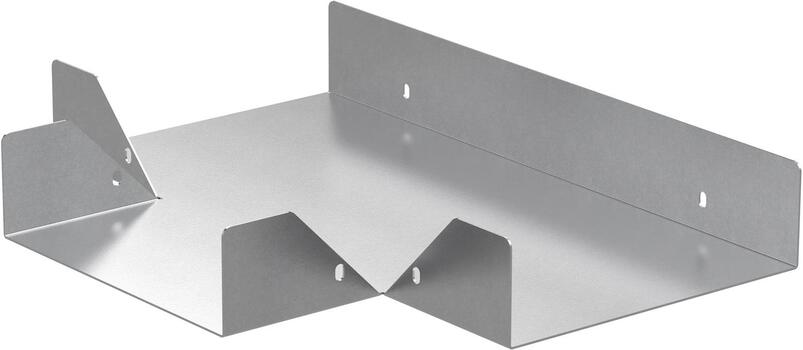

T-junction W12/60-400 SKH PG white

Commercialized

Item number

782429

Local code: *

GTIN: 7321677824298

Description: T-junction W12/60-400 SKH PG white

Wibe Group. 782429 - Wibe - T-junction W12/60-400 - steel pre-galvanized - white

Data Sheet

Product status

Commercialized

Short description

T-junction W12/60-400 SKH PG white

Medium description

Wibe - T-junction W12/60-400 - steel pre-galvanized - white

Material

Steel

Material type or surface treatment

Painted

Environmental corrosion class

Activity

Cable support systems

Product family

Cable trays

Brand

Wibe

GTIN

7321677824298

Cable tray height (EF004822)

60 mm

Cable tray width (EF004820)

400 mm

Construction type (EF000767)

T-piece horizontal

Inner radius (EF004793)

* mm

NATO (EF006059)

Model (EF000010)

Without connector

Wide span model (EF006397)

Suitable for circuit integrity (EF007806)

Material (EF002169)

Steel

Stainless steel, pickled (EF006388)

Material quality (EF001257)

Surface protection (EF000139)

Continuously galvanized and coated

Colour (EF000007)

White

RAL (EF000116)

9010

Pack 1 type

Each

Quantity pack 1

Weight pack 1

3.2 kg

Length pack 1

598 mm

Width pack 1

498 mm

Height pack 1

58 mm

Customs code

73089059

Net weight

3.2 kg

Country of origin

ETIM class

EC001544

Environmental Documents

Item number

782429

Local code: *

GTIN: 7321677824298

Description: T-junction W12/60-400 SKH PG white

Data Sheet

Corrosion class		C1	C2	C3	C4	C5	CX
Environmental corrosion		Very low	Low	Average	High	Very high	Extreme
Examples of environments	Indoors	Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels.	Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses.	Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries.	High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards.	Buildings with almost permanent condensation and with high pollution	Industrial buildings with extreme humidity and aggressive atmosphere.
Examples of environments	Outdoors		Atmospheres with low levels of airborne pollution. Rural areas.	Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions.	Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas.	Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity	Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres.
Wibe Group designation Exceeds requirements. Extremely high durability. Recommended very high durability ( >20 years) Possible alternative. High durability (10-20 years)	Electro-galvanized (EG)
	Pre-galvanized (PG)
	Zinc+ (Z+)
	Hot-dip galvanized (HDG)
	Zinkpox (ZP)
	Stainless steel AISI 304L(SS304)
	Stainless steel AISI 316L (SS316)
	Glass Fibre Reinforced Polymer (FRP/GRP)
