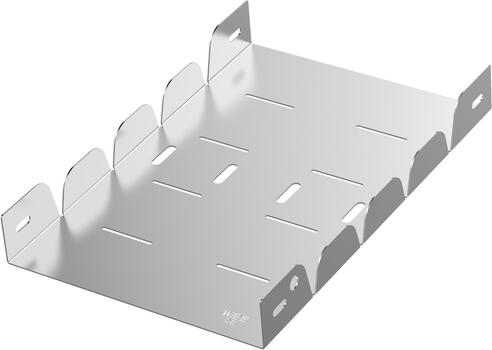

Vertical riser W11F/40-100 HDG
Commercialized
Item number
783910
Local code:
*
GTIN:
7321677839100
Description:
Vertical riser W11F/40-100 HDG
Wibe Group. 783910 - Wibe - vertical riser W11/40-100 - steel hot-dip galvanized
Properties
Status product
Product status
Commercialized
Commercial and Web
Short description
Vertical riser W11F/40-100 HDG
Medium description
Wibe - vertical riser W11/40-100 - steel hot-dip galvanized
Material
Steel
Material type or surface treatment
Hot-dip galvanized
Environmental corrosion class
C4
Base
Activity
Cable support systems
Product family
Cable trays
Brand
Wibe
GTIN
7321677839100
ETIM (EC002400-Bend for cable tray)
Change of direction (EF005210)
Rising/descending
Angle (EF001218)
Adjustable
Construction type (EF000767)
Vertical adjustable bend complete
Bend model (EF020423)
Segmental bend
With cover (EF007965)
No
Inner radius (EF004793)
0 mm
Cable tray height (EF004822)
40 mm
Cable tray width (EF004820)
100 mm
Material thickness (EF000386)
0.7 mm
Side wall perforation (EF001122)
Yes
Mounting perforation in bottom (EF004545)
No
NATO (EF006059)
No
Model (EF000010)
Without connector
Wide span model (EF006397)
No
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Steel
Stainless steel, pickled (EF006388)
No
Material quality (EF001257)
*
Surface protection (EF000139)
Hot-dip galvanized
Colour (EF000007)
*
RAL (EF000116)
*
Logistic
Pack 1 type
Each
Quantity pack 1
1
Weight pack 1
0.4 kg
Length pack 1
300 mm
Width pack 1
100 mm
Height pack 1
40 mm
Pack 4 type
Pallet
Quantity pack 4
320
Weight pack 4
165 kg
Length pack 4
1200 mm
Width pack 4
800 mm
Height pack 4
530 mm
GTIN pack 4
77321677839109
Customs code
73089059
Net weight
0.4 kg
Country of origin
SE
Certification
ETIM class
EC002400
Environmental
GWP Total A1-A3
1.116 kgCO2e
Product downloads
Environmental Documents
Downloads
Environmental Products
| Corrosion class | C1 | C2 | C3 | C4 | C5 | CX | |
| Environmental corrosion | Very low | Low | Average | High | Very high | Extreme | |
| Examples of environments | Indoors | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | Buildings with almost permanent condensation and with high pollution | Industrial buildings with extreme humidity and aggressive atmosphere. |
| Outdoors | Atmospheres with low levels of airborne pollution. Rural areas. | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | ||
|
Wibe Group designation
Exceeds requirements. Extremely high durability.
Recommended very high durability ( >20 years)
Possible alternative. High durability (10-20 years) |
Electro-galvanized (EG) |
|
|
||||
| Pre-galvanized (PG) |
|
|
|
||||
| Zinc+ (Z+) |
|
|
|
|
|||
| Hot-dip galvanized (HDG) |
|
|
|
|
|
||
| Zinkpox (ZP) |
|
|
|
|
|
|
|
| Stainless steel AISI 304L(SS304) |
|
|
|
|
|
|
|
| Stainless steel AISI 316L (SS316) |
|
|
|
|
|
|
|
| Glass Fibre Reinforced Polymer (FRP/GRP) |
|
|
|
|
|
|
|
This table shows estimated values.
For more detailed advice, please contact technical support at Wibe Group
