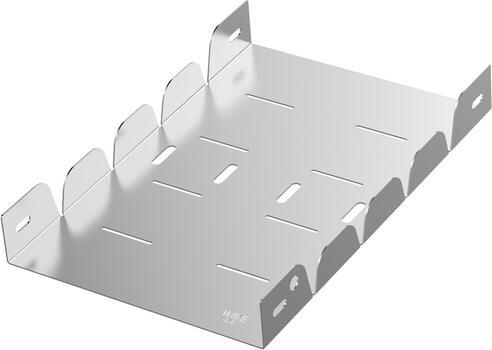

Vertical riser W11F/40-70 HDG
Commercialized
Item number
783909
Local code:
*
GTIN:
7321677839094
Description:
Vertical riser W11F/40-70 HDG
Wibe Group. 783909 - Wibe - vertical riser W11/40-70 - steel hot-dip galvanized
Properties
Status product
Product status
Commercialized
Commercial and Web
Short description
Vertical riser W11F/40-70 HDG
Medium description
Wibe - vertical riser W11/40-70 - steel hot-dip galvanized
Material
Steel
Material type or surface treatment
Hot-dip galvanized
Corrosion class
C4
Base
Activity
Cable support systems
Product family
Cable trays
Brand
Wibe
GTIN
7321677839094
ETIM (EC002400-Bend for cable tray)
Change of direction (EF005210)
Rising/descending
Angle (EF001218)
Adjustable
Construction type (EF000767)
Bend rigid
Bend model (EF020423)
Segmental bend
With cover (EF007965)
No
Inner radius (EF004793)
* mm

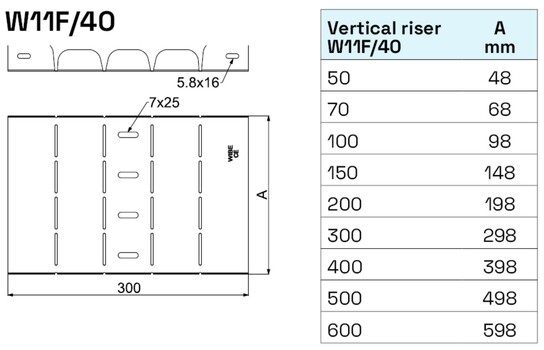

Cable tray height (EF004822)
40 mm
Cable tray width (EF004820)
70 mm
Material thickness (EF000386)
.7 mm
Side wall perforation (EF001122)
Yes
Mounting perforation in bottom (EF004545)
No
NATO (EF006059)
No
Model (EF000010)
Without connector
Wide span model (EF006397)
No
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Steel
Stainless steel, pickled (EF006388)
No
Material quality (EF001257)
Other
Surface protection (EF000139)
Hot-dip galvanized
Colour (EF000007)
*
RAL (EF000116)
*
Logistic
Pack 1 type
Each
Quantity pack 1
1
Weight pack 1
.31 kg
Length pack 1
300 mm
Width pack 1
70 mm
Height pack 1
40 mm
Pack 4 type
Pallet
Quantity pack 4
448
Weight pack 4
176 kg
Length pack 4
1200 mm
Width pack 4
800 mm
Height pack 4
530 mm
GTIN pack 4
77321677839093
Customs code
73089059
Net weight
.31 kg
Country of origin
SE
Certification
ETIM class
EC002400
Environmental
GWP Total A1-A3
.8649 kgCO2e
