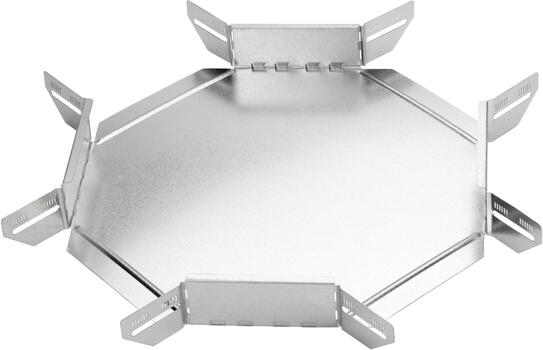

X-Piece 85x300 Zinc+

Commercialized

Item number

CSUZ8163004

Local code: *

GTIN: 3606481116703

Description: X-Piece 85x300 Zinc+

Wibe Group. CSUZ8163004 - Stago - cross piece fixed - 85x300 mm - sheet steel - zinc+

Data Sheet

Product status

Commercialized

Short description

X-Piece 85x300 Zinc+

Medium description

Stago - cross piece fixed - 85x300 mm - sheet steel - zinc+

Width

300 mm

Height

85 mm

Material

Steel

Material type or surface treatment

Zinc+

Environmental corrosion class

Activity

Cable support systems

Product family

Cable trays

Brand

Stago

GTIN

3606481116703

Cable tray height (EF004822)

85 mm

Cable tray width (EF004820)

300 mm

Inner radius (EF004793)

* mm

NATO (EF006059)

Model (EF000010)

Without connector

Wide span model (EF006397)

Suitable for circuit integrity (EF007806)

Yes

Material (EF002169)

Steel

Stainless steel, pickled (EF006388)

Material quality (EF001257)

Surface protection (EF000139)

Galvanic/electrolytic zinc plated

Colour (EF000007)

RAL (EF000116)

ETIM class

EC001542

Item number

CSUZ8163004

Local code: *

GTIN: 3606481116703

Description: X-Piece 85x300 Zinc+

Data Sheet

Corrosion class		C1	C2	C3	C4	C5	CX
Environmental corrosion		Very low	Low	Average	High	Very high	Extreme
Examples of environments	Indoors	Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels.	Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses.	Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries.	High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards.	Buildings with almost permanent condensation and with high pollution	Industrial buildings with extreme humidity and aggressive atmosphere.
Examples of environments	Outdoors		Atmospheres with low levels of airborne pollution. Rural areas.	Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions.	Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas.	Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity	Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres.
Wibe Group designation Exceeds requirements. Extremely high durability. Recommended very high durability ( >20 years) Possible alternative. High durability (10-20 years)	Electro-galvanized (EG)
	Pre-galvanized (PG)
	Zinc+ (Z+)
	Hot-dip galvanized (HDG)
	Zinkpox (ZP)
	Stainless steel AISI 304L(SS304)
	Stainless steel AISI 316L (SS316)
	Glass Fibre Reinforced Polymer (FRP/GRP)
