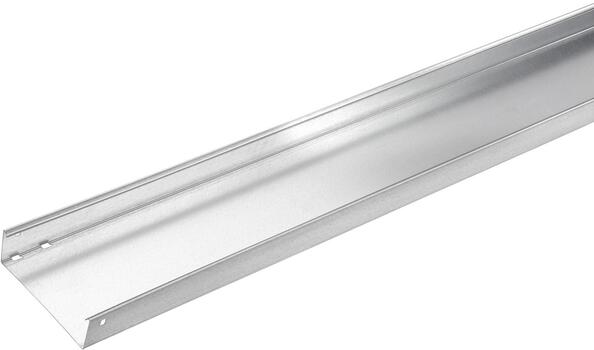

Cable tray H=60 10MM HDG 400 L=3
Commercialized
Item number
CSU76004024
Local code:
*
GTIN:
3606489448424
Description:
Cable tray H=60 10MM HDG 400 L=3
Wibe Group. CSU76004024 - Stago - TV184 tray closed 60x400mm L=3m 1mm hot-dip galvanized
Properties
Commercial and Web
Short description
Cable tray H=60 10MM HDG 400 L=3
Medium description
Stago - TV184 tray closed 60x400mm L=3m 1mm hot-dip galvanized
Width
400 mm
Material
Steel
Material type or surface treatment
Hot-dip galvanized
Corrosion class
C4
Base
Activity
Cable support systems
Product family
Cable trays
Brand
Stago
Range
KB184; TV184
GTIN
3606489448424
ETIM (EC000047-Cable tray/wide span cable tray)
Height (EF000040)
60 mm
Width (EF000008)
400 mm
Material thickness (EF000386)
1 mm
Length (EF001438)
3000 mm
Useful cross section (EF005140)
24000 mm²
With cover (EF007965)
No
Side wall perforation (EF001122)
No
Mounting perforation in bottom (EF004545)
No
NATO (EF006059)
No
Model (EF000010)
Without connector
Wide span model (EF006397)
No
Suitable for circuit integrity (EF007806)
Yes
Material (EF002169)
Steel
Stainless steel, pickled (EF006388)
No
Material quality (EF001257)
*
Surface protection (EF000139)
*
Colour (EF000007)
*
RAL (EF000116)
*
Weight (EF000167)
* kg/m
Max. safe working load according to IEC 61537 (EF016305)
* N/m
Span between supports according to IEC 61537 (EF015363)
* mm
Load test type according to IEC 61537 (EF015362)
*
Logistic
Pack 1 type
Each
Quantity pack 1
1
Weight pack 1
4.865 kg
Length pack 1
1000 mm
Width pack 1
400 mm
Height pack 1
60 mm
Certification
ETIM class
EC000047
Status product
Product status
Commercialized
Product downloads
Environmental Documents
