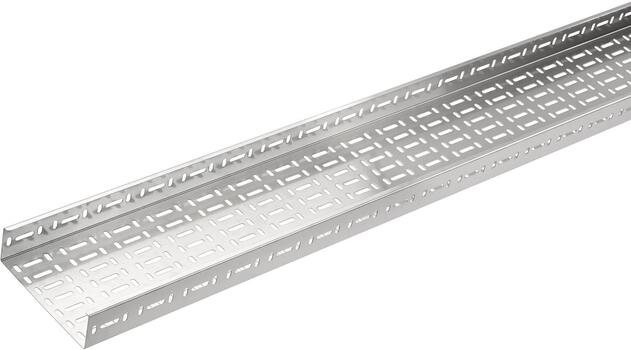

Cable tray H=60 ,Stainless 304 400

/storage/07FDA6742C227545D74DC3F4360E183FBB21229B09EFE733A3402D9068C74319/321be9928ab24784a4184f4ef03de11d/jpg/media/96f14b1c87bf468893e879d1b7800e11/CSU76704034.jpg
Commercialized

Item number

CSU76704034

Local code: *
GTIN: 8712186093296
Description: Cable tray H=60 ,Stainless 304 400

Corrosion class

Wibe Group. CSU76704034 - Stago - ES114 tray perforated 60x400mm L=3m 1mm stainless steel AISI 304

Properties

Commercial and Web
Short description
Cable tray H=60 ,Stainless 304 400
Medium description
Stago - ES114 tray perforated 60x400mm L=3m 1mm stainless steel AISI 304
Width
400 mm
Material
Stainless steel
Material type or surface treatment
AISI304
Corrosion class
C5-I
Base
Activity
Cable support systems
Product family
Cable trays
Brand
Stago
Range
ES114
GTIN
8712186093296
ETIM (EC000047-Cable tray/wide span cable tray)
Height (EF000040)
60 mm
Width (EF000008)
400 mm
Material thickness (EF000386)
1 mm
Length (EF001438)
3000 mm
Useful cross section (EF005140)
24000 mm²
With cover (EF007965)
No
Side wall perforation (EF001122)
Yes
Mounting perforation in bottom (EF004545)
Yes
NATO (EF006059)
No
Model (EF000010)
Without connector
Wide span model (EF006397)
No
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Stainless steel
Stainless steel, pickled (EF006388)
Yes
Material quality (EF001257)
Stainless steel V2A
Surface protection (EF000139)
Other
Colour (EF000007)
*
RAL (EF000116)
*
Weight (EF000167)
* kg/m
Max. safe working load according to IEC 61537 (EF016305)
* N/m
Span between supports according to IEC 61537 (EF015363)
* mm
Load test type according to IEC 61537 (EF015362)
*
Logistic
Pack 1 type
Each
Quantity pack 1
1
Weight pack 1
3.117 kg
Length pack 1
1000 mm
Width pack 1
400 mm
Height pack 1
60 mm
Customs code
7308909800
Net weight
9.35 kg
Country of origin
NL
Certification
ETIM class
EC000047
Status product
Product status
Commercialized
