Cable tray H=60 ,Stainless 304 500

/storage/4278E0A8CA57D5D038766B60217FF0F44670D9DDF73337014FA724CDEE741D64/134ce03d6cd546aaba6c11945355b154/jpg/media/808a6ce5cac44730930d977df4bd707a/CSU76705034.jpg
Commercialized

Item number

CSU76705034

Local code: *
GTIN: 8712186093302
Description: Cable tray H=60 ,Stainless 304 500

Corrosion class

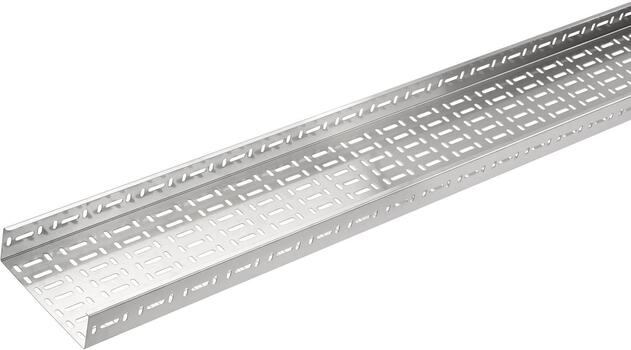

Wibe Group. CSU76705034 - Stago - ES114 tray perforated 60x500mm L=3m 1mm stainless steel AISI 304

Properties

Commercial and Web
Short description
Cable tray H=60 ,Stainless 304 500
Medium description
Stago - ES114 tray perforated 60x500mm L=3m 1mm stainless steel AISI 304
Width
500 mm
Material
Stainless steel
Material type or surface treatment
AISI304
Corrosion class
C5-I
Base
Activity
Cable support systems
Product family
Cable trays
Brand
Stago
Range
ES114
GTIN
8712186093302
ETIM (EC000047-Cable tray/wide span cable tray)
Height (EF000040)
60 mm
Width (EF000008)
500 mm
Material thickness (EF000386)
1 mm
Length (EF001438)
3000 mm
Useful cross section (EF005140)
30000 mm²
With cover (EF007965)
No
Side wall perforation (EF001122)
Yes
Mounting perforation in bottom (EF004545)
Yes
NATO (EF006059)
No
Model (EF000010)
Without connector
Wide span model (EF006397)
No
Suitable for circuit integrity (EF007806)
Yes
Material (EF002169)
Stainless steel
Stainless steel, pickled (EF006388)
Yes
Material quality (EF001257)
Stainless steel V2A
Surface protection (EF000139)
Other
Colour (EF000007)
*
RAL (EF000116)
*
Weight (EF000167)
* kg/m
Max. safe working load according to IEC 61537 (EF016305)
* N/m
Span between supports according to IEC 61537 (EF015363)
* mm
Load test type according to IEC 61537 (EF015362)
*
Logistic
Pack 1 type
Each
Quantity pack 1
1
Weight pack 1
3.64 kg
Length pack 1
1000 mm
Width pack 1
500 mm
Height pack 1
60 mm
Customs code
7308909800
Net weight
10.92 kg
Country of origin
NL
Certification
ETIM class
EC000047
Status product
Product status
Commercialized

Item number

CSU76705034

Local code: *
GTIN: 8712186093302
Description: Cable tray H=60 ,Stainless 304 500

Corrosion class
