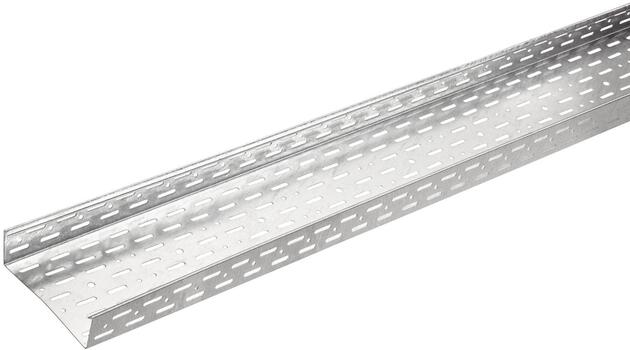

KB184 Perf. tray 35x100 T=1.0 L=3m PG
Commercialized
Item number
CSU73011004
Local code:
*
GTIN:
8712186041570
Description:
KB184 Perf. tray 35x100 T=1.0 L=3m PG
Wibe Group. CSU73011004 - Stago - KB184 tray perforated 35x100mm L=3m 1mm pre-galvanized
Properties
Commercial and Web
Short description
KB184 Perf. tray 35x100 T=1.0 L=3m PG
Medium description
Stago - KB184 perforated cable tray 35x100mm - T=1mm - L=3m - pre-galvanized
Length
3000 mm
Width
100 mm
Height
35 mm
Material
Steel
Material type or surface treatment
Pre-galvanized
Corrosion class
C2
Base
Activity
Cable support systems
Product family
Cable trays
Brand
Stago
Range
KB184
GTIN
8712186041570
ETIM (EC000047-Cable tray/wide span cable tray)
Height (EF000040)
35 mm
Width (EF000008)
100 mm
Material thickness (EF000386)
1 mm
Length (EF001438)
3000 mm
Useful cross section (EF005140)
3500 mm²
With cover (EF007965)
No
Side wall perforation (EF001122)
Yes
Mounting perforation in bottom (EF004545)
Yes
NATO (EF006059)
No
Model (EF000010)
Without connector
Wide span model (EF006397)
No
Suitable for circuit integrity (EF007806)
Yes
Material (EF002169)
Steel
Stainless steel, pickled (EF006388)
No
Material quality (EF001257)
*
Surface protection (EF000139)
Continuously galvanized
Colour (EF000007)
*
RAL (EF000116)
*
Weight (EF000167)
* kg/m
Max. safe working load according to IEC 61537 (EF016305)
* N/m
Span between supports according to IEC 61537 (EF015363)
* mm
Load test type according to IEC 61537 (EF015362)
*
Logistic
Pack 1 type
Each
Quantity pack 1
1
Weight pack 1
1.321 kg
Length pack 1
1000 mm
Width pack 1
100 mm
Height pack 1
35 mm
Customs code
7308909800
Country of origin
NL
Certification
ETIM class
EC000047
Status product
Product status
Commercialized
