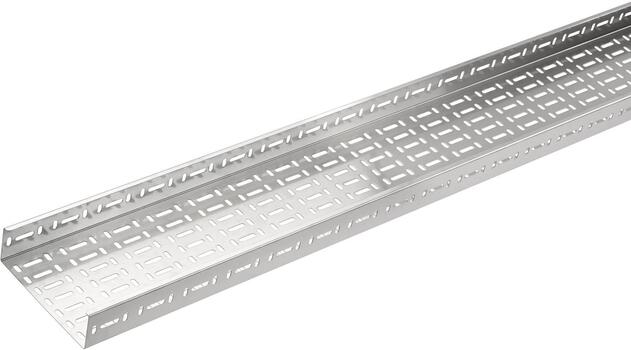

Cable tray perf.ES114 W=150 H=110 AIS304

Commercialized

Item number

CSU71701534

Local code: *

GTIN: 3606480686627

Description: Cable tray perf.ES114 W=150 H=110 AIS304

Wibe Group. CSU71701534 - Stago - ES114 tray perforated 110x150mm L=3m 1mm stainless steel AISI 304

Data Sheet

Product status

Commercialized

Short description

Cable tray perf.ES114 W=150 H=110 AIS304

Medium description

Stago - ES114 tray perforated 110x150mm L=3m 1mm stainless steel AISI 304

Length

3000 mm

Width

150 mm

Height

110 mm

Material

Stainless steel

Material type or surface treatment

AISI304

Environmental corrosion class

Activity

Cable support systems

Product family

Cable trays

Brand

Stago

Range

ES114

GTIN

3606480686627

Height (EF000040)

110 mm

Width (EF000008)

150 mm

Material thickness (EF000386)

1 mm

Length (EF001438)

3000 mm

Useful cross section (EF005140)

16500 mm²

With cover (EF007965)

Side wall perforation (EF001122)

Yes

Mounting perforation in bottom (EF004545)

Yes

NATO (EF006059)

Model (EF000010)

Without connector

Wide span model (EF006397)

Suitable for circuit integrity (EF007806)

Material (EF002169)

Stainless steel

Stainless steel, pickled (EF006388)

Material quality (EF001257)

Stainless steel V2A

Surface protection (EF000139)

Other

Colour (EF000007)

RAL (EF000116)

Weight (EF000167)

2.51 kg/m

Max. safe working load according to IEC 61537 (EF016305)

* N/m

Span between supports according to IEC 61537 (EF015363)

* mm

Load test type according to IEC 61537 (EF015362)

Type I

Pack 1 type

Each

Quantity pack 1

Weight pack 1

7.54 kg

Length pack 1

3000 mm

Width pack 1

150 mm

Height pack 1

110 mm

Customs code

7308909800

Net weight

7.54 kg

Country of origin

ETIM class

EC000047

GWP Total A1-A3

24.81647 kgCO2e

Environmental Documents

Item number

CSU71701534

Local code: *

GTIN: 3606480686627

Description: Cable tray perf.ES114 W=150 H=110 AIS304

Data Sheet

Corrosion class		C1	C2	C3	C4	C5	CX
Environmental corrosion		Very low	Low	Average	High	Very high	Extreme
Examples of environments	Indoors	Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels.	Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses.	Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries.	High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards.	Buildings with almost permanent condensation and with high pollution	Industrial buildings with extreme humidity and aggressive atmosphere.
Examples of environments	Outdoors		Atmospheres with low levels of airborne pollution. Rural areas.	Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions.	Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas.	Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity	Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres.
Wibe Group designation Exceeds requirements. Extremely high durability. Recommended very high durability ( >20 years) Possible alternative. High durability (10-20 years)	Electro-galvanized (EG)
	Pre-galvanized (PG)
	Zinc+ (Z+)
	Hot-dip galvanized (HDG)
	Zinkpox (ZP)
	Stainless steel AISI 304L(SS304)
	Stainless steel AISI 316L (SS316)
	Glass Fibre Reinforced Polymer (FRP/GRP)
